Inspect The Stop Lamp Circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

[Stop Lamp Switch Input/Output]

G15709380Courtesy of KIA MOTORS AMERICA, INC.

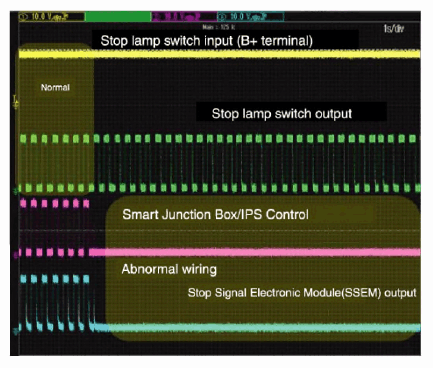

[Oscilloscope waveform screen]

G15709381Courtesy of KIA MOTORS AMERICA, INC.
