Rear Disc Brake: Replacement

Perform the "Brake Pad Change Mode" by KDS following in the order below. (With EPB)
1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "Electronic Stability Program" on KDS vehicle selection screen.

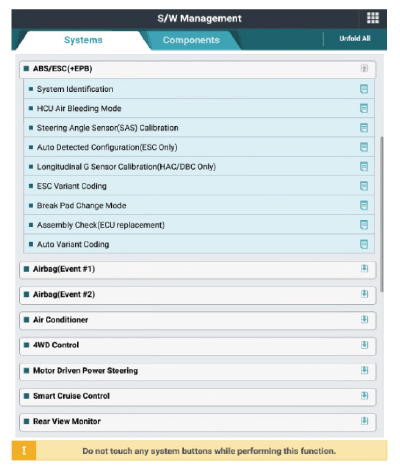

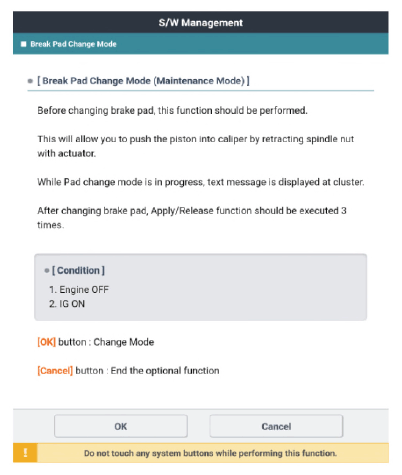

3. Select the "Brake Pad Change Mode" on KDS screen, then select OK.

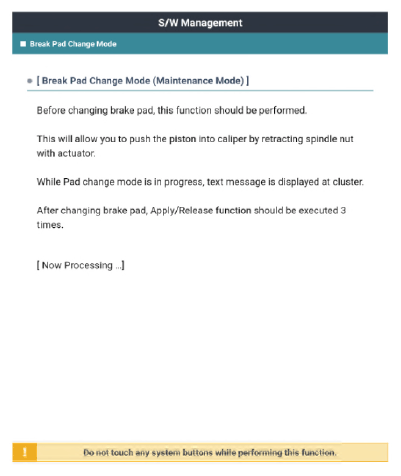

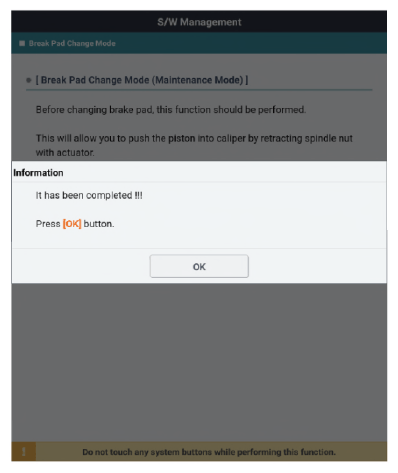

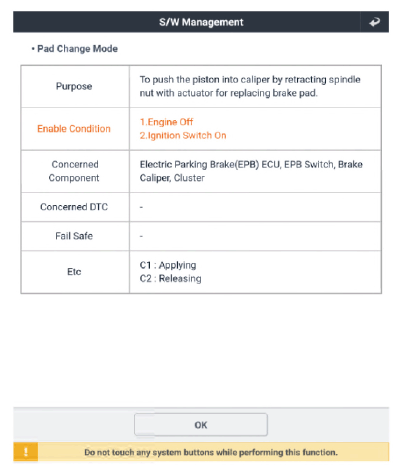

4. Proceed with the test according to the screen instructions.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery negative terminal.
Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")

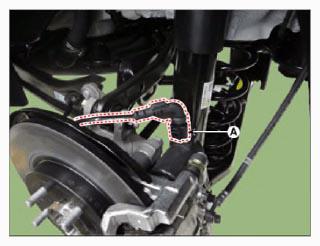

Disconnect the EPB connector (A). (With EPB)

Courtesy of KIA MOTORS AMERICA, INC.

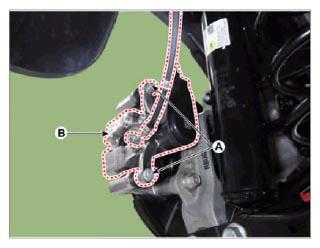

Loosen the guide rod bolts (A) and then hold the caliper housing (B) with wire.
Tightening torque:

With EPB: 37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb.ft)

Without EPB: 21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

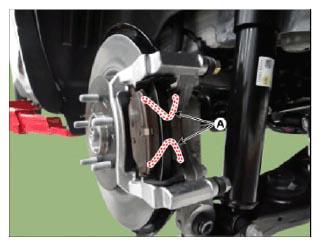

Remove the return springs (A). (with EPB)

Courtesy of KIA MOTORS AMERICA, INC.

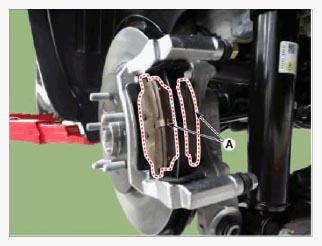

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

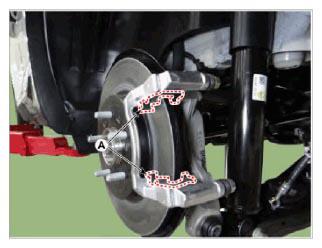

Remove the pad liner (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the pad liner (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.

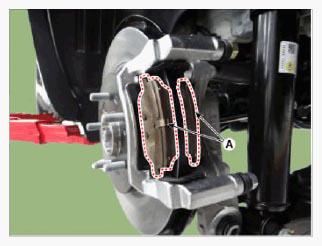

Install the brake pads (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
Install the return springs (A) with a new one. (with EPB)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Pad return springs must be replaced with new ones whenever pads are replaced.
Technicians should be careful not to deform pad return springs.
When pad return springs are deformed, it may cause improper braking, more fuel consumption.
