Rear Brake Pad Check
- Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

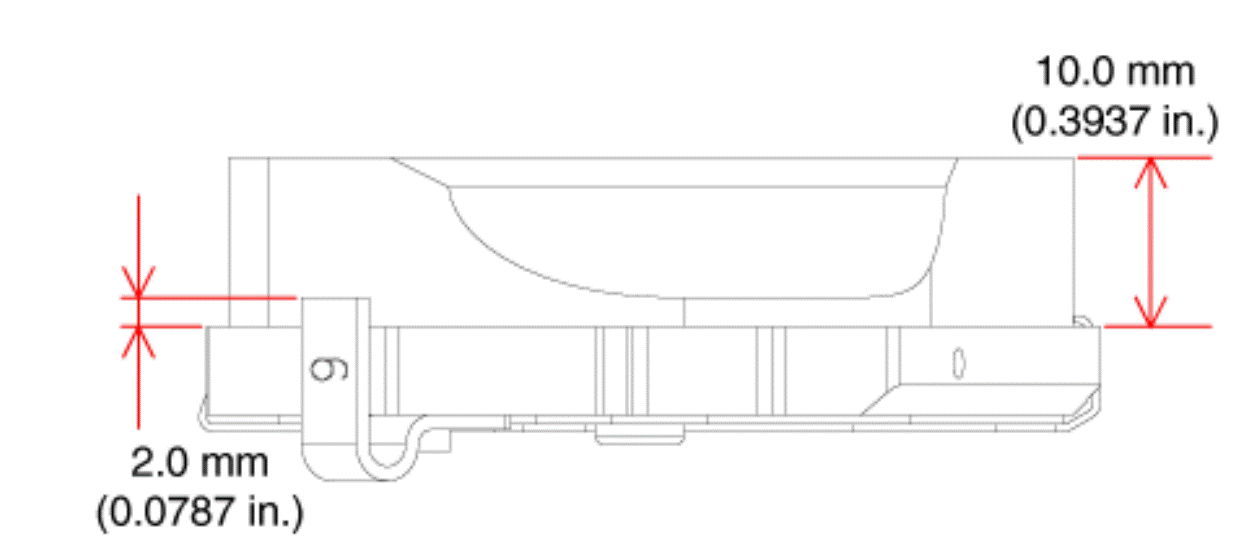

Pad thickness
Standard: 10 mm (0.3937 in.)
Service limit: 2.0 mm (0.0787 in.)
Information

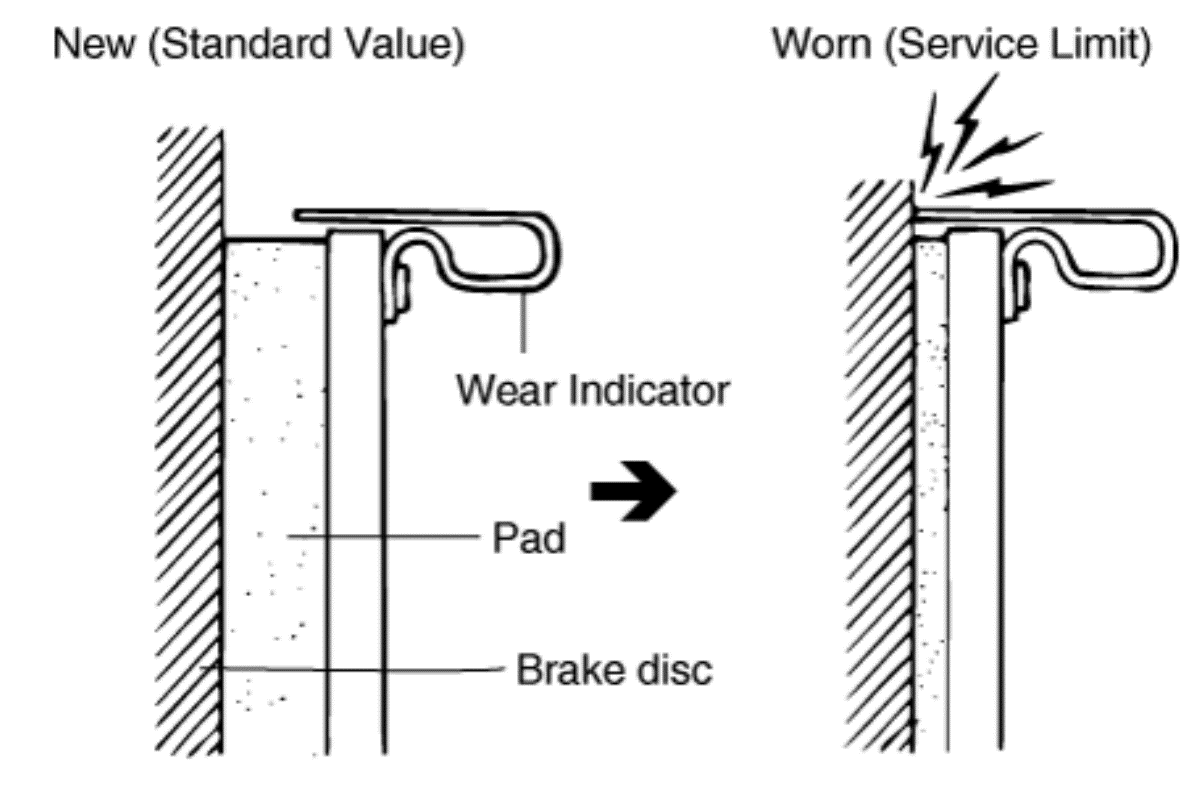

The brake pad wear indicator and brake disc make a friction noise when brake pads are worn out below the service limit of 2.0 mm (0.0787 in.)
- Check that grease is applied to sliding contact points, and check the pad and backing metal for damage.
