Removal & Installation: Removal

Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the brake fluid from the master cylinder reservoir with a syringe.
NOTE: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

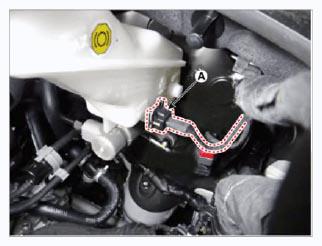

Disconnect the brake fluid level sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

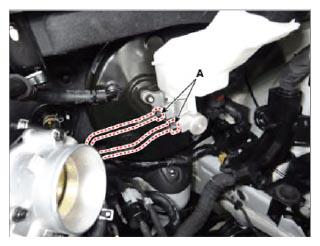

Disconnect the brake tube (A) from the master cylinder by loosening the tube flare nut.
Tightening torque:

18.6 - 22.5 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

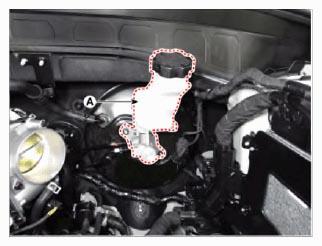

Remove the master cylinder (A) from the brake booster after loosening the mounting nuts.
Tightening torque:

9.8 - 15.7 N.m (1.0 - 1.6 kgf.m, 7.2 - 11.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

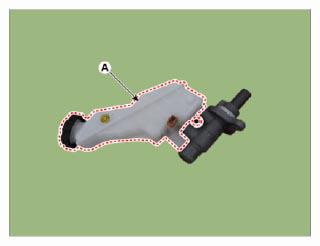

Remove the reservoir (A) from the master cylinder after loosening the screw.
Tightening torque:

2.5 - 2.9 N.m (0.25 - 0.30 kgf.m, 1.8 - 2.2 lb.ft, 21.7 - 26.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
