Removal & Installation: Removal

Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

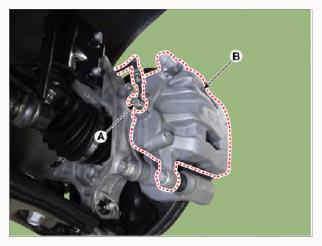

Disconnect the brake hose (A) by loosening the bolt.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)
Remove the caliper housing (B) by loosening the guided rod bolt.
Tightening torque:

25.5 - 37.3 N.m (2.6 - 3.8 kgf.m, 18.8 - 27.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

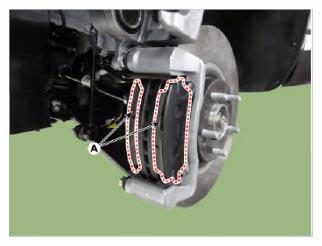

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

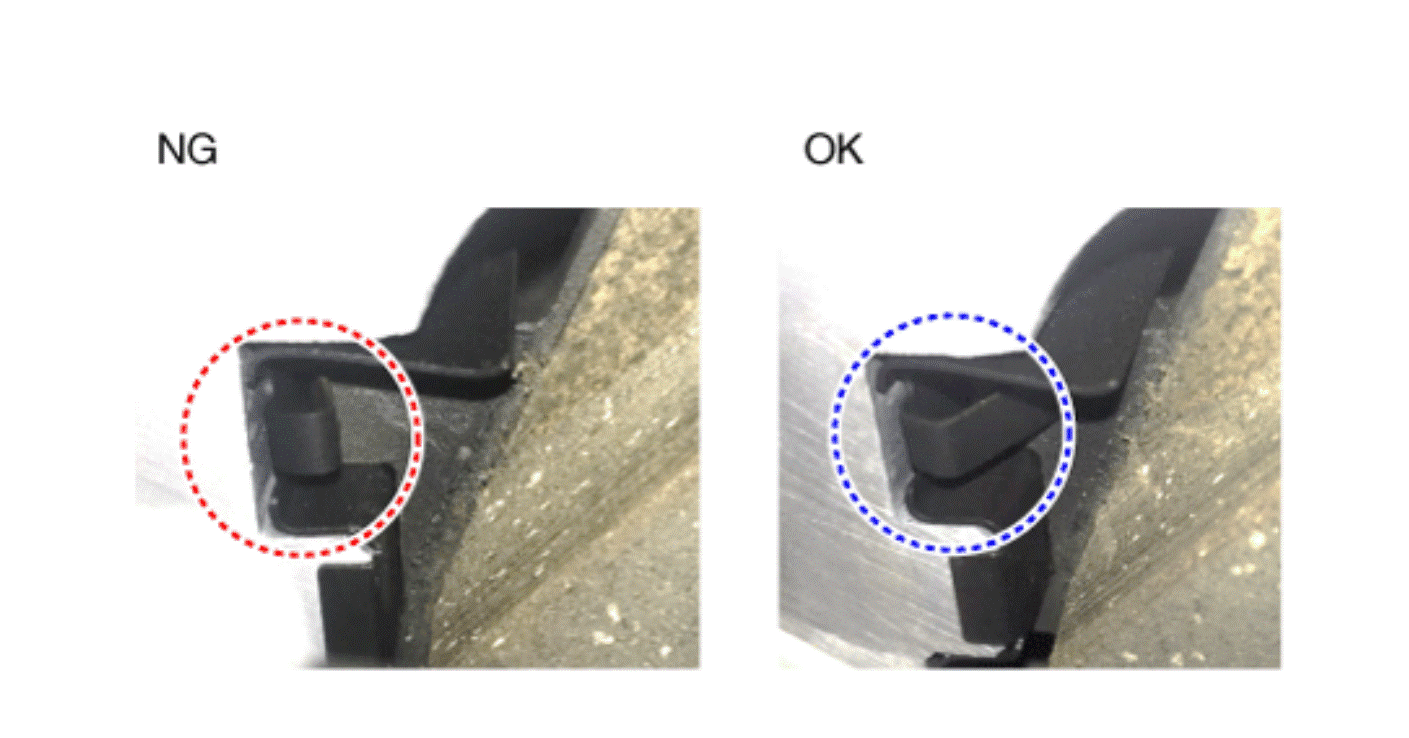

When installing pad, be sure to check if the pad spring retraction part is installed correctly.
- Do not assemble if the pad spring retraction part is pressed by pad back plate ear.
Courtesy of KIA MOTORS AMERICA, INC.

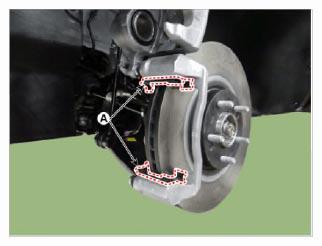

Remove the pad spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

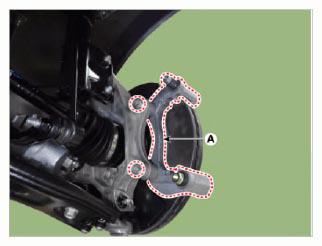

Remove the caliper carrier (A) by loosening the bolts.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

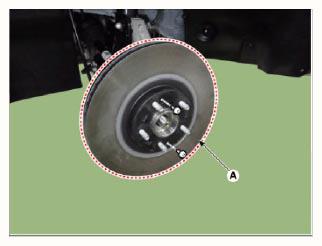

Remove the front brake disc (A) by loosening the screws.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)
