Removal & Installation: Installation
- Install in the reverse order of removal.

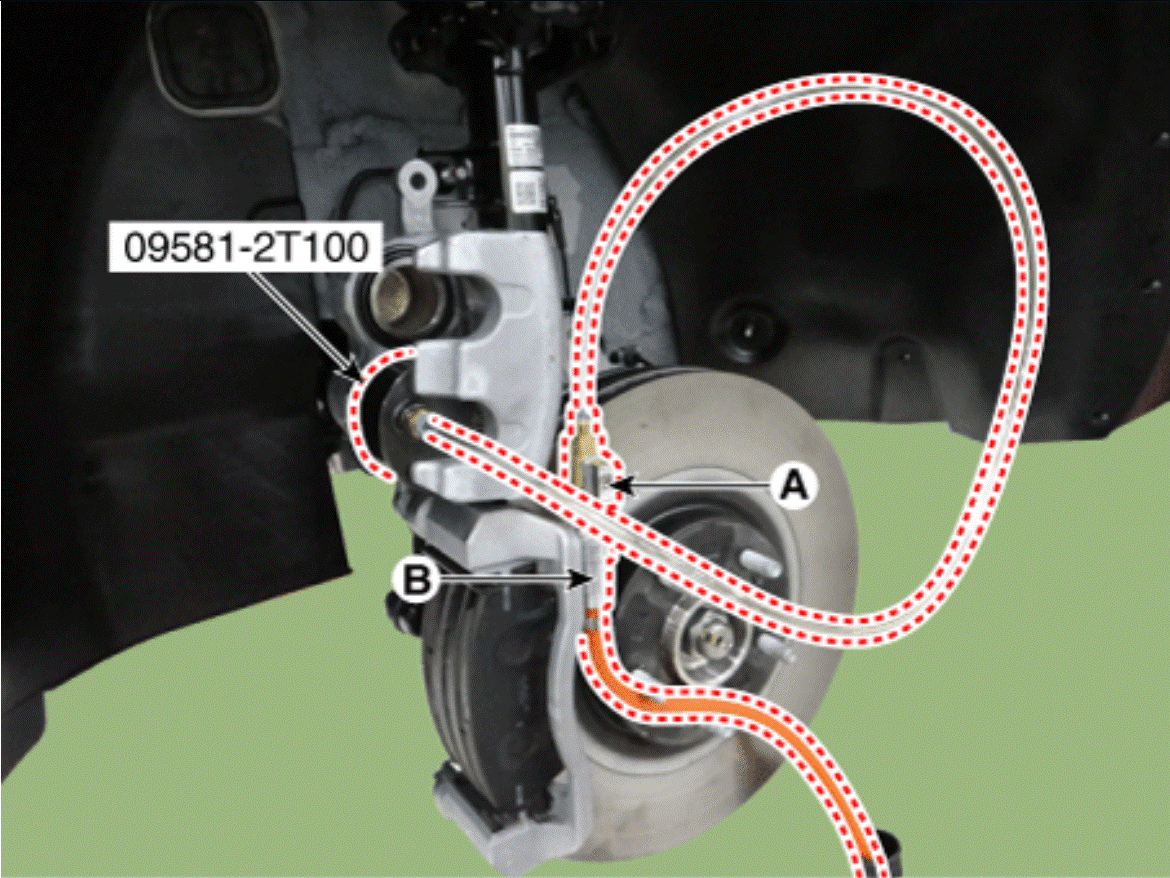

- Use a SST (09581-2T100) when installing the brake caliper assembly.NOTE:
- Connect an air hose (B) to the SST after confirming that the valve of the SST is surely closed.
- Input the SST in the caliper and press the caliper piston while opening the valve of the SST slowly counterclockwise
- Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
- After installation, bleed the brake system.
(Refer to Brake system - "BRAKE BLEEDING PROCEDURES ")
