Front Brake Pad Check

Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

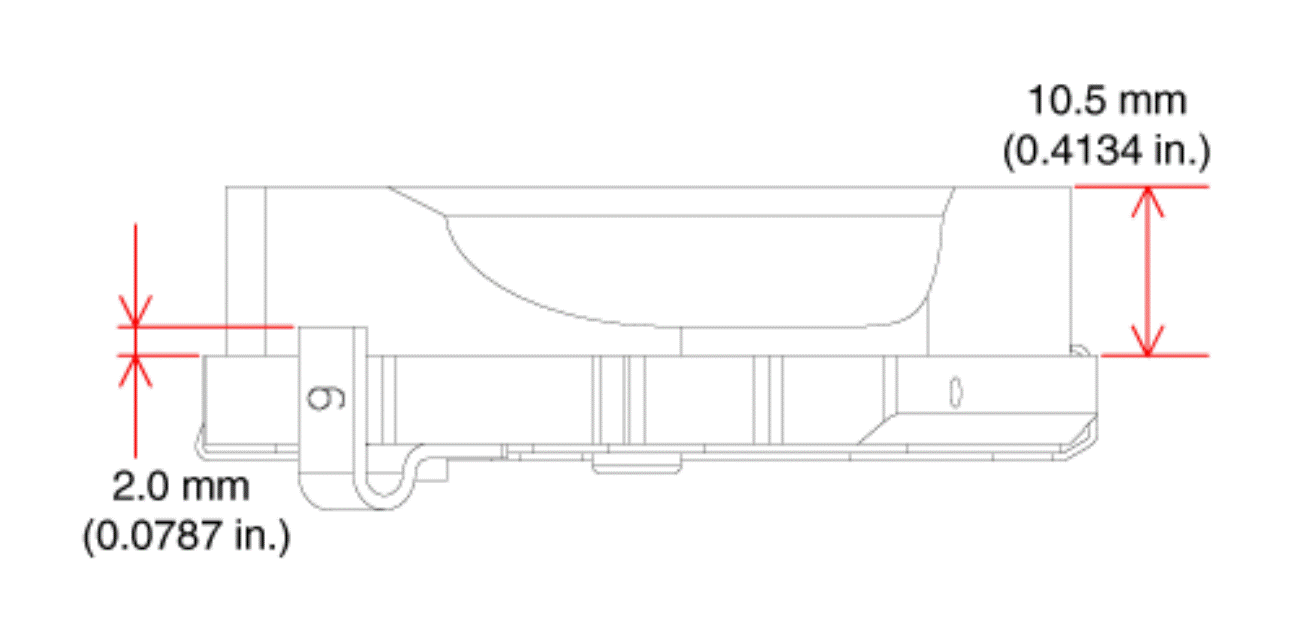

Pad thickness

Standard value: 10.5 mm (0.4134 in.)

Service limit: 2.0 mm (0.0787 in.)

Courtesy of KIA MOTORS AMERICA, INC.
Check that grease is applied to sliding contact points and check the pad and backing metal for damage.
