Front Brake Disc Thickness Check
- Check the brake pads for wear and fade.
- Check the brake disc for damage and cracks.

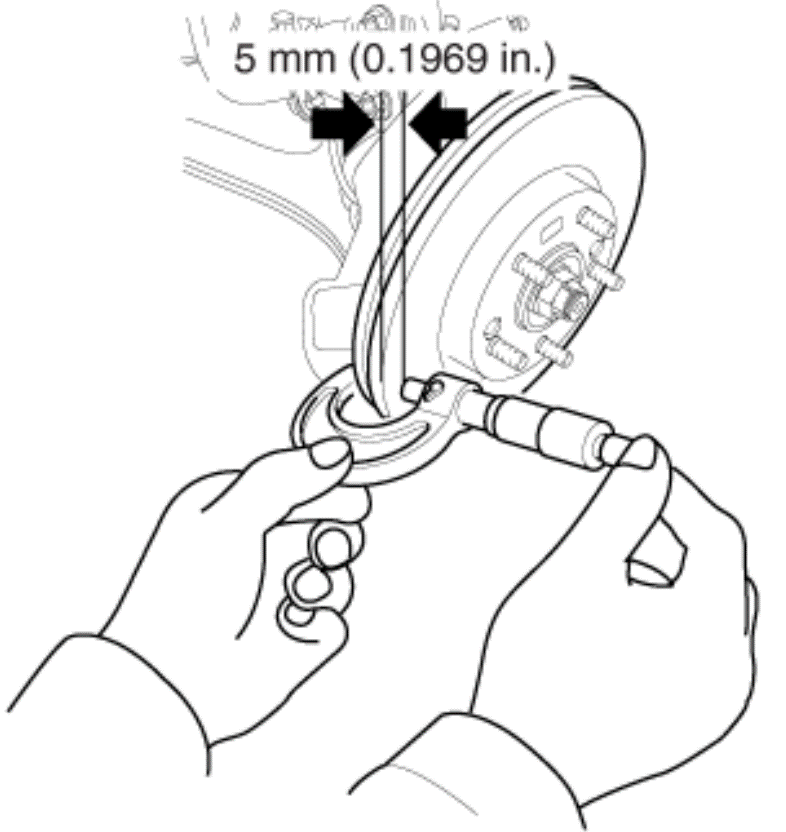

- Remove all rust and contamination from the surface, and measure the disc thickness at 8 points, at least, at the same distance 5 mm (0.1969 in.) apart from the brake disc outer circle.
Front brake disc thickness
Standard: 30 mm (1.1811 in.)
Service limit: 28 mm (1.1024 in.)
- If wear exceeds the limit, replace the discs and pad assembly left and right of the vehicle.
