Removal & Installation: Removal

Disconnect the negative battery terminal.
Remove the identity authentication unit (IAU).
(Refer to Body Electrical System - "IDENTITY AUTHENTICATION UNIT (IAU) ")

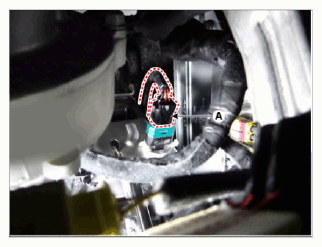

Disconnect the brake switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

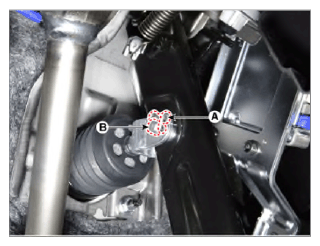

Disconnect the snap pin (A) and clevis pin (B).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Before installing the pin, apply the grease to the joint pin.
- Use a new snap pin whenever installing.

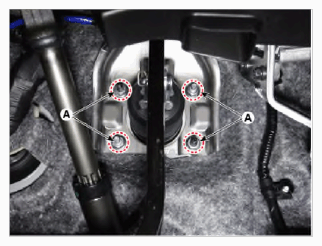

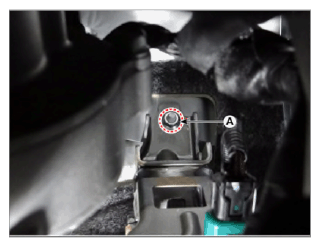

Remove the brake pedal mounting nuts (A).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

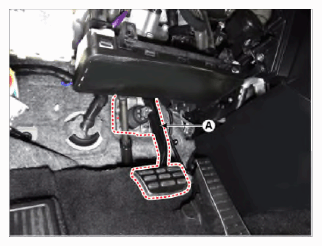

Remove the brake pedal assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
