Brake System Bleeding

NOTE:

Do not reuse the drained fluid.
Always use genuine DOT3/DOT4 brake Fluid.
Using a non-genuine DOT3/DOT4 brake fluid can cause corrosion and decrease the life of the system.
Make sure that no dirt or other foreign matter is allowed to contaminate the brake fluid.
Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.
The reservoir on the master cylinder must be at the MAX (upper) level mark at the start of bleeding procedure and checked after bleeding each brake caliper. Add fluid as required.

Make sure that the brake fluid in the reservoir is at the MAX (upper) level line.
Have someone to slowly pump the brake pedal several times, and then apply pressure.
Loosen the right-rear brake bleed screw (A) to allow air to escape from the system. Then tighten the bleed screw securely.

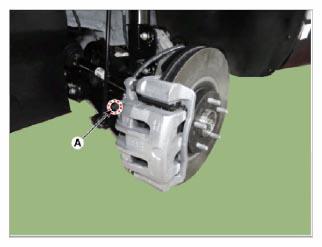

Front

Courtesy of KIA MOTORS AMERICA, INC.

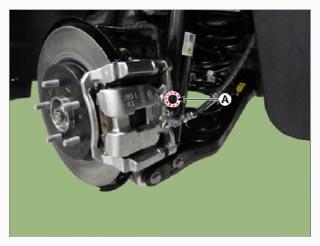

Rear

Courtesy of KIA MOTORS AMERICA, INC.

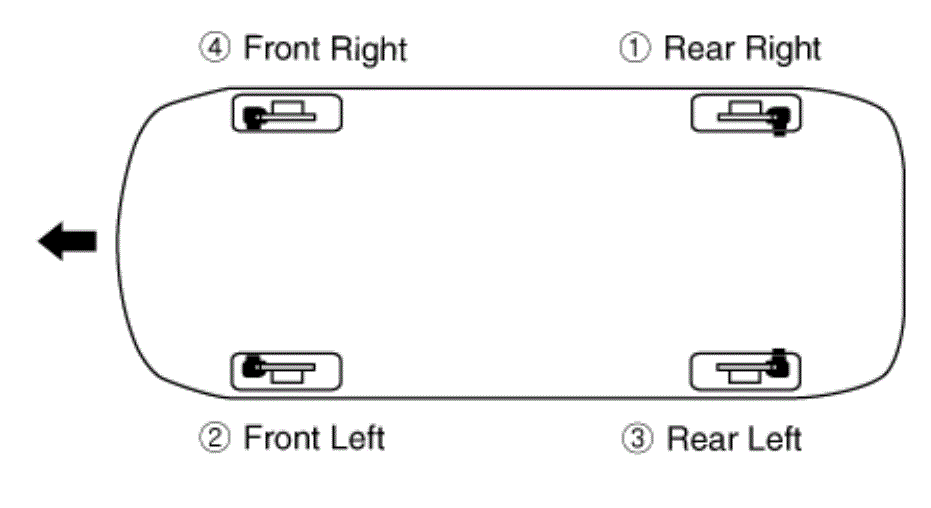

Repeat the procedure for wheel in the sequence shown below until air bubbles no longer appear in the fluid.

Courtesy of KIA MOTORS AMERICA, INC.
Refill the master cylinder reservoir to MAX (upper) level line.
