Third Row Seat Assembly

  1. Remove the third row seat assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

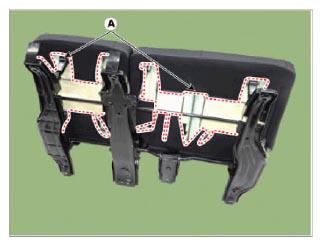

  2. Remove the protectors (A) from the third row seat cushion frame.
    G15709984Courtesy of KIA MOTORS AMERICA, INC.

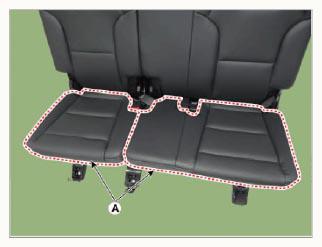

  3. Remove the third row seat cushion cover (A) from the third row seat cushion frame.
    G15709985Courtesy of KIA MOTORS AMERICA, INC.

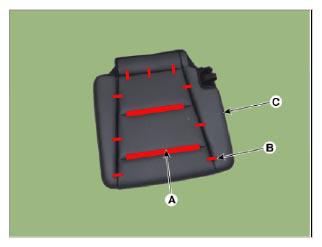

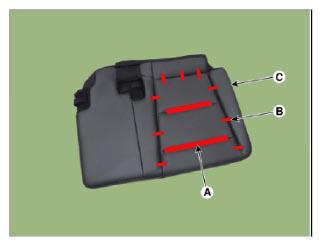

  4. Remove the velcro tape (A) and hog ring clips (B) from the inside of the third row seat cushion cover (C).

    [Driver's side]

    G15709986Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger's side]

    G15709987Courtesy of KIA MOTORS AMERICA, INC.

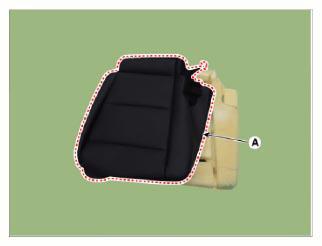

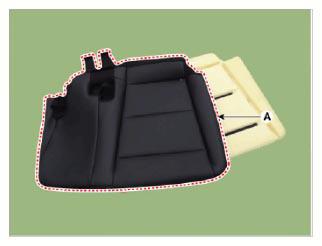

  5. Remove the third row seat cushion cover (A) from the third row seat cushion pad.

    [Driver's side]

    G15709988Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger's side]

    G15709989Courtesy of KIA MOTORS AMERICA, INC.
