[Passenger's side]

Remove the passenger's side second row seat assembly [6:4].
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

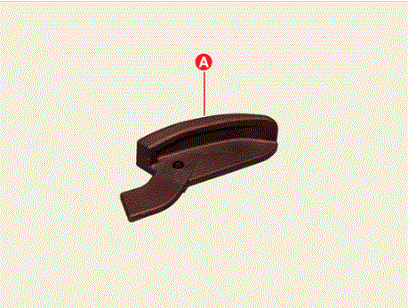

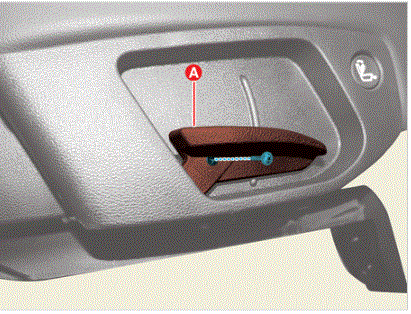

Remove the second row seat recliner knob (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

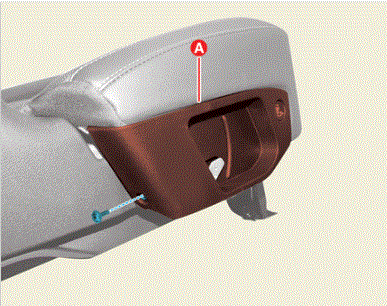

Remove the rear cushion lever garnish (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

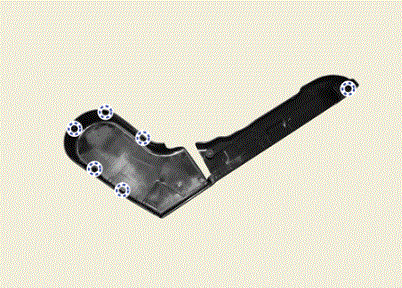

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

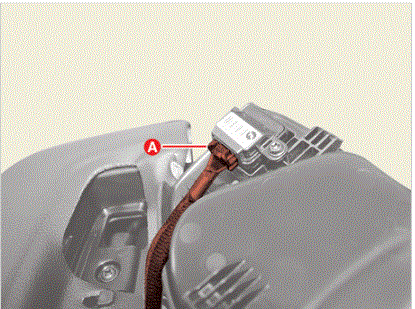

Disconnect the walk-in switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

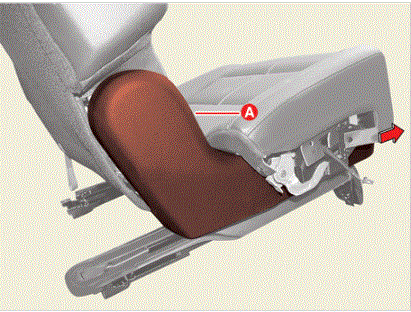

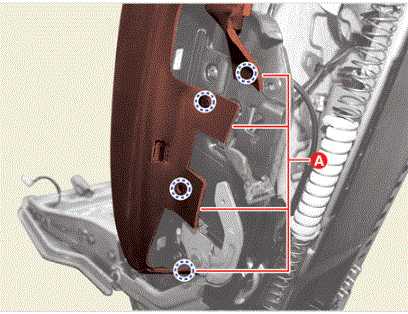

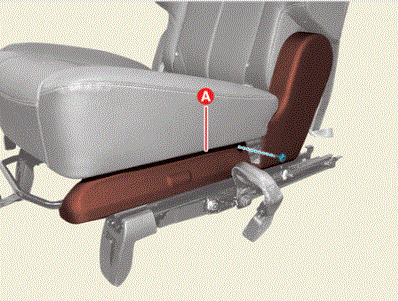

Remove the rear cushion shield outer cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

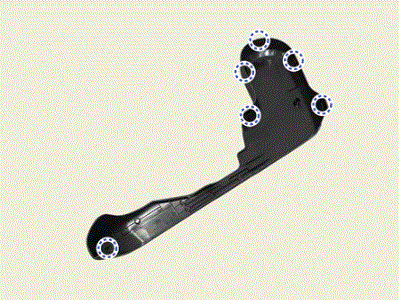

Information

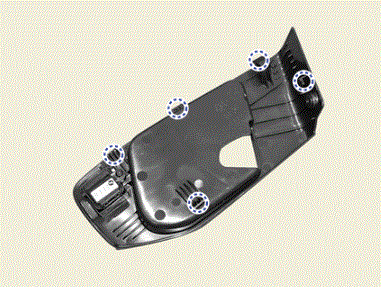

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear cushion shield inner cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

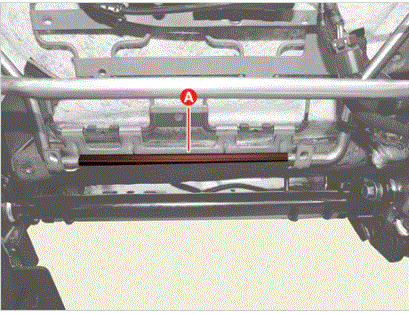

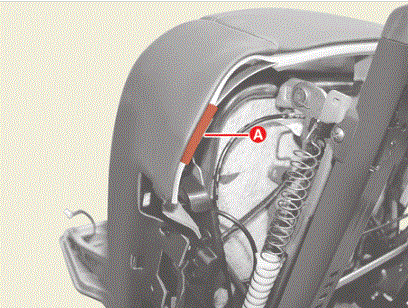

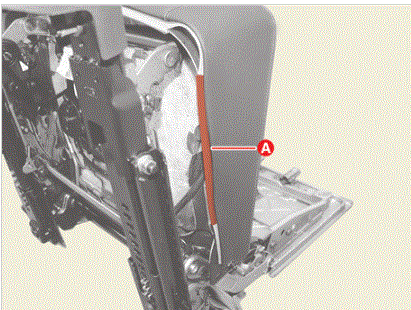

Remove the protectors (A) from the second row seat cushion frame.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

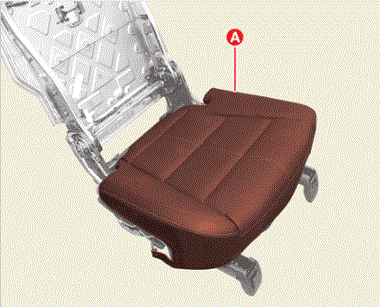

Remove the second row seat cushion assembly (A) from the second row seat cushion frame.

Courtesy of KIA MOTORS AMERICA, INC.

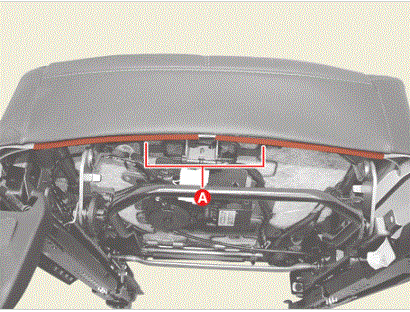

Remove the velcro tapes (A).

Courtesy of KIA MOTORS AMERICA, INC.

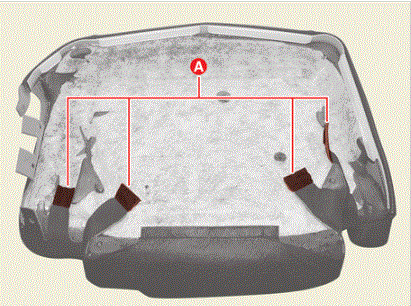

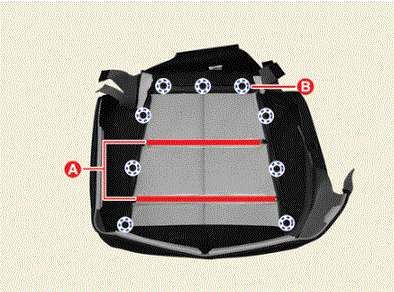

Remove the velcro tapes (A) and the hog ring clips (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

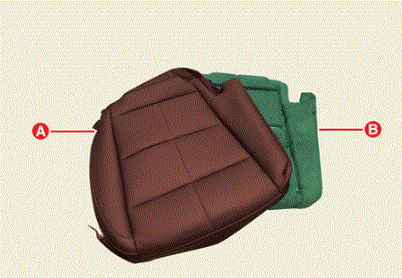

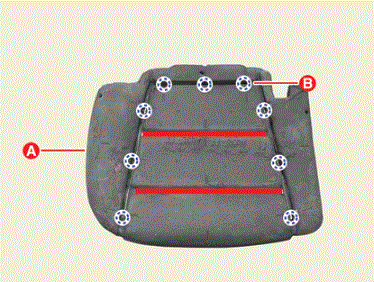

Remove the second row seat cushion cover (A) from the second row seat cushion pad (B).

Courtesy of KIA MOTORS AMERICA, INC.
