Second Row Seat Assembly [5:5]

  1. Remove the second row seat assembly [5:5].

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

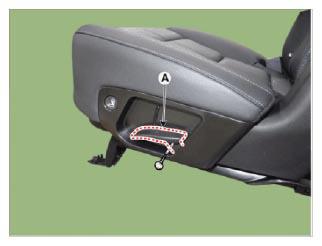

  2. Remove the second row seat recliner knob (A) after removing the screw.
    G15709970Courtesy of KIA MOTORS AMERICA, INC.

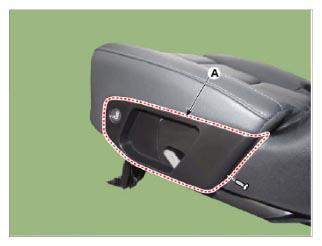

  3. Remove the rear cushion lever garnish (A) after removing the screw.
    G15709971Courtesy of KIA MOTORS AMERICA, INC.

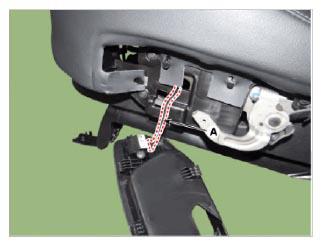

  4. Disconnect the walk-in switch connector (A).
    G15709972Courtesy of KIA MOTORS AMERICA, INC.

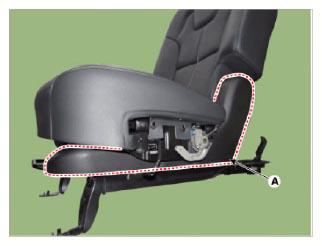

  5. Remove the rear cushion shield outer cover (A).
    G15709973Courtesy of KIA MOTORS AMERICA, INC.

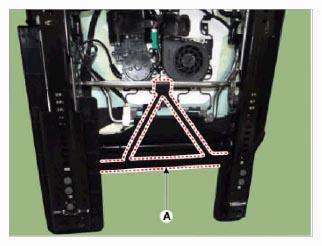

  6. Remove the second row seat lower protector (A).
    G15709974Courtesy of KIA MOTORS AMERICA, INC.

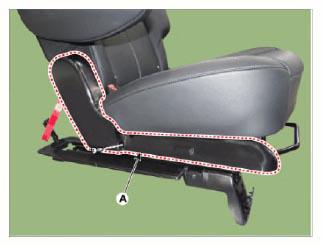

  7. Remove the second row seat cushion shield inner cover (A) after removing the screw.
    G15709975Courtesy of KIA MOTORS AMERICA, INC.

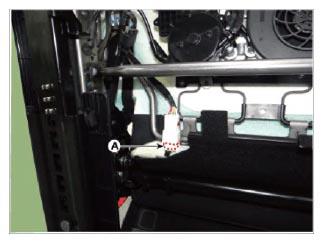

  8. Disconnect the second row seat heater connector (A).
    G15709976Courtesy of KIA MOTORS AMERICA, INC.

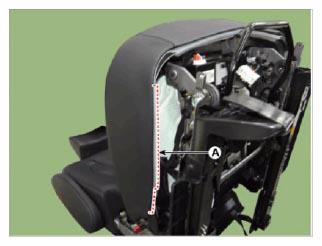

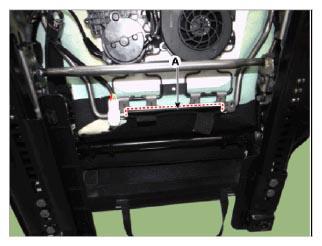

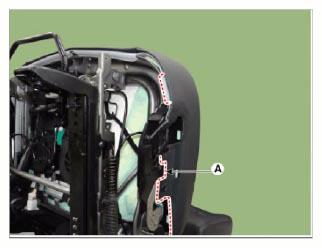

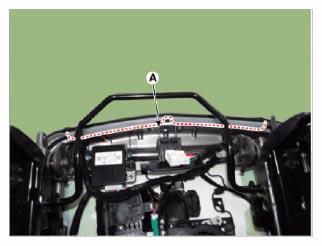

  9. Remove the protectors (A) from the second row seat cushion frame.
    G15709977Courtesy of KIA MOTORS AMERICA, INC.
    G15709978Courtesy of KIA MOTORS AMERICA, INC.
    G15709979Courtesy of KIA MOTORS AMERICA, INC.
    G15709980Courtesy of KIA MOTORS AMERICA, INC.

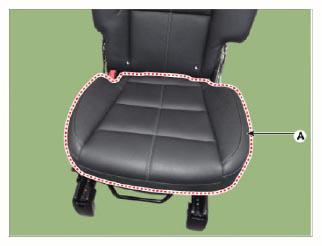

  10. Remove the second row seat cushion assembly (A) from the seat cushion frame.
    G15709981Courtesy of KIA MOTORS AMERICA, INC.

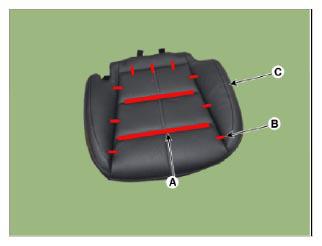

  11. Remove the velcro tape (A) and hog ring clips (B) from the inside of the seat cushion cover (C).
    G15709982Courtesy of KIA MOTORS AMERICA, INC.

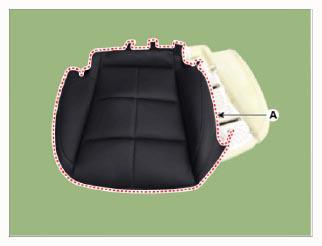

  12. Remove the second row seat cushion cover (A) from the second row seat cushion pad.
G15709983Courtesy of KIA MOTORS AMERICA, INC.
