Third Row Seat Assembly

Remove the third row seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

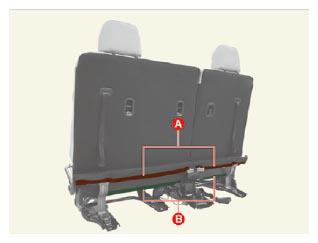

Remove the third row seat back cover lower protectors (A) and (B).

Courtesy of KIA MOTORS AMERICA, INC.

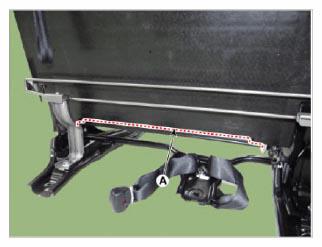

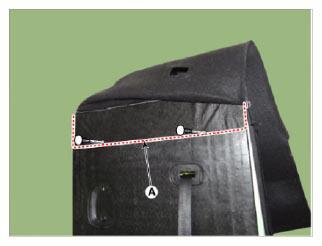

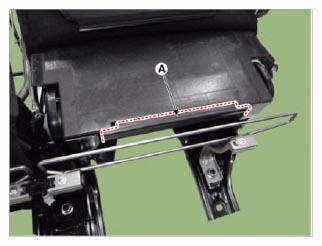

Remove the third row seat back cover lower protector (A).
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.

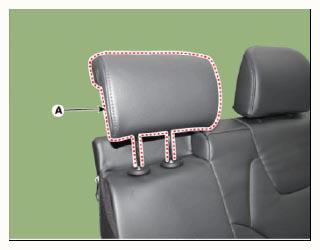

Remove the center headrest (A) by pressing the hook.

Courtesy of KIA MOTORS AMERICA, INC.

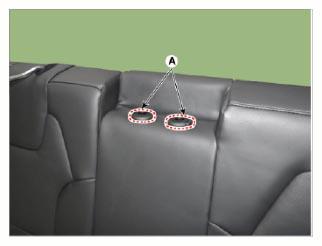

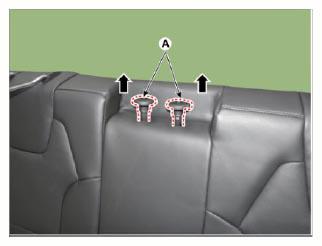

Remove the center headrest guides (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

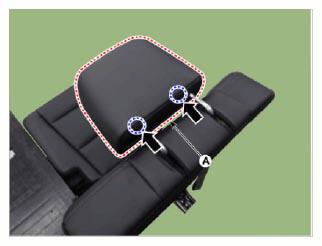

Remove the headrest (A) by pressing the hooks in the direction of the arrows.

Courtesy of KIA MOTORS AMERICA, INC.

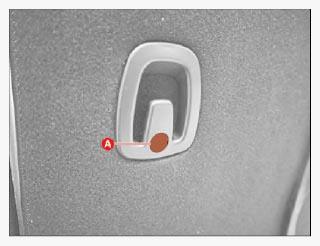

Remove the shopping hook cover screw cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

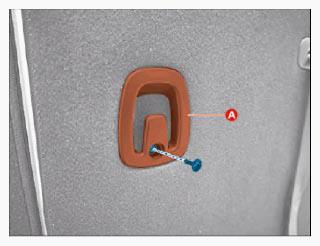

Remove the shopping hook cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the tether garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

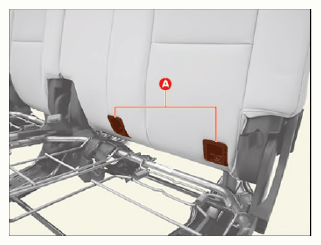

Remove the child lower anchors (A).

Courtesy of KIA MOTORS AMERICA, INC.

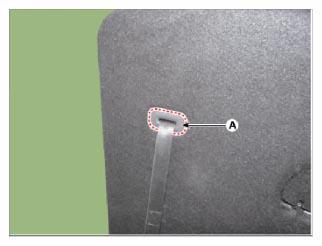

Remove the strap folding cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

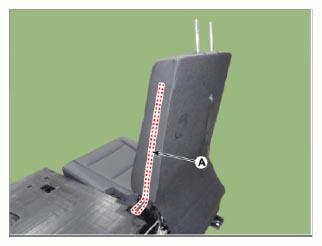

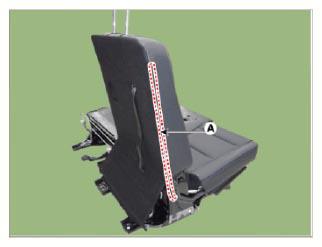

Open the seat back cover side zipper (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

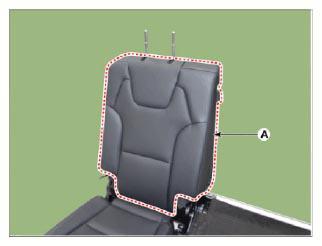

Remove the seat back cover assembly (A) after removing the clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

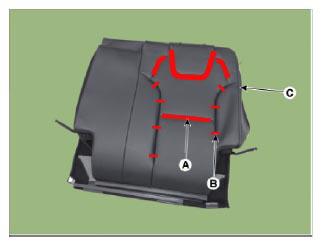

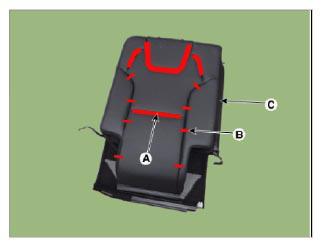

Remove the velcro tape (A) and hog ring clips (B) from the inside of the seat back cover (C).
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.

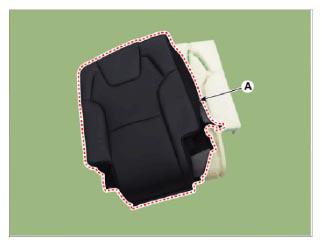

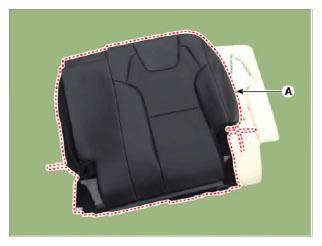

Remove the rear seat back cover (A) from the seat back pad.
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.
