[Passenger's side]

Remove the passenger's side second row seat assembly [6:4].
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

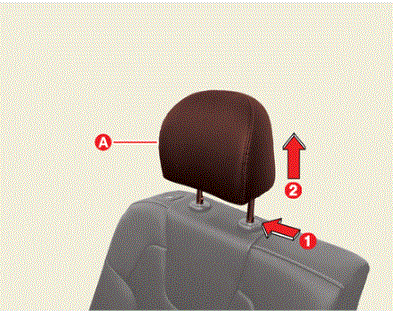

Remove the headrest (A).
1. Press the hooks in the direction of the arrow (1).
2. Remove the headrest (A) by pulling it in the direction of the arrow (2).
Courtesy of KIA MOTORS AMERICA, INC.

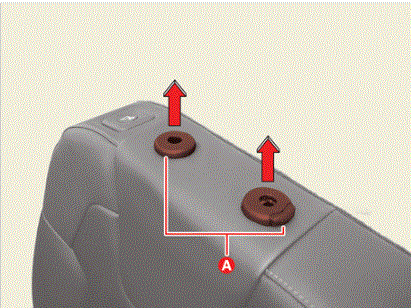

Remove the headrest guides (A) in the direction of the arrows.

Courtesy of KIA MOTORS AMERICA, INC.

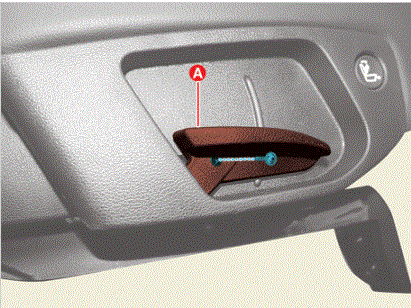

Remove the second row seat recliner knob (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

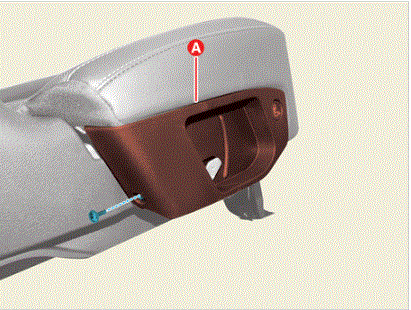

Remove the second row seat cushion lever garnish (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

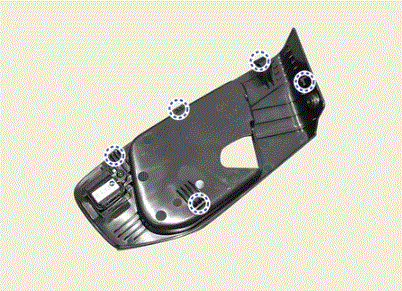

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

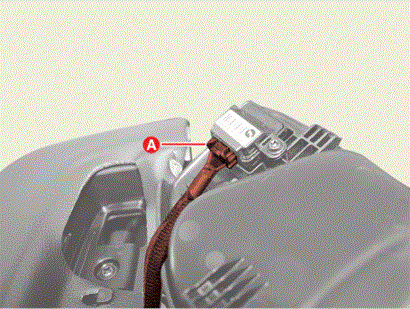

Disconnect the walk-in switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

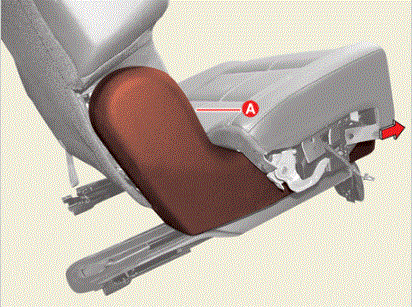

Remove the rear cushion shield outer cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

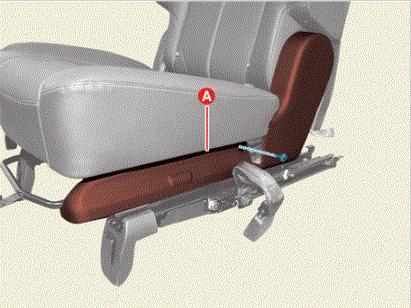

Remove the rear cushion shield inner cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

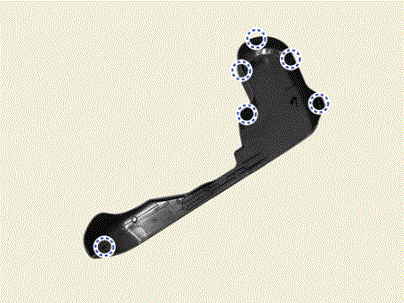

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Remove the second row seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

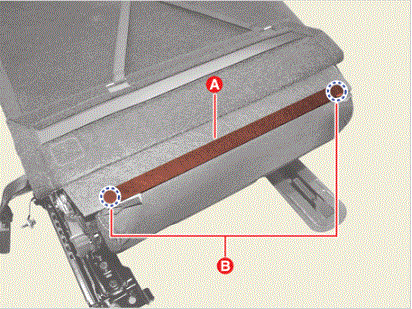

Remove the protector (A) and clips (B).

Courtesy of KIA MOTORS AMERICA, INC.

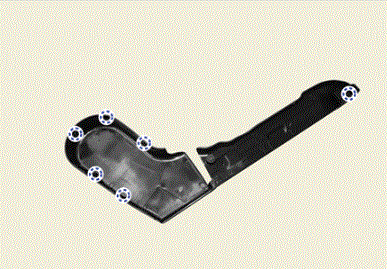

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

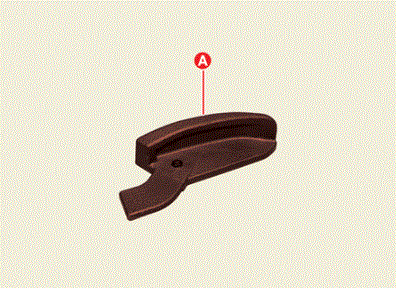

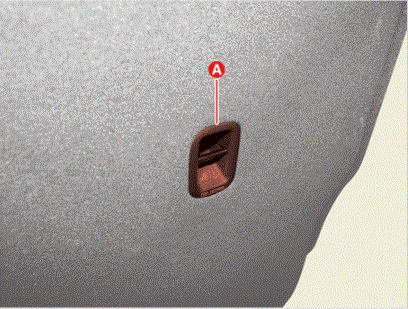

Remove the tether garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

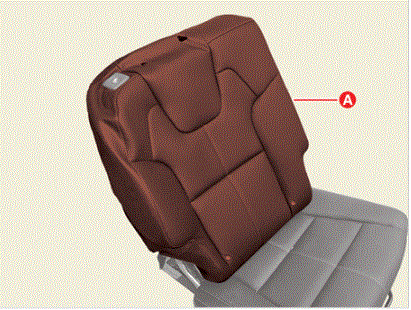

Remove the seat back cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

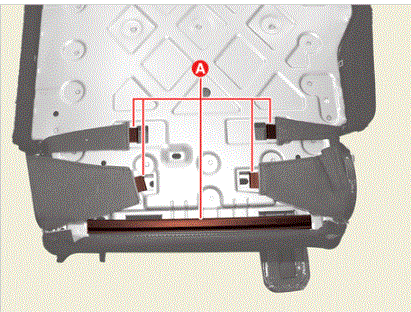

Remove the second row seat back lower protectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

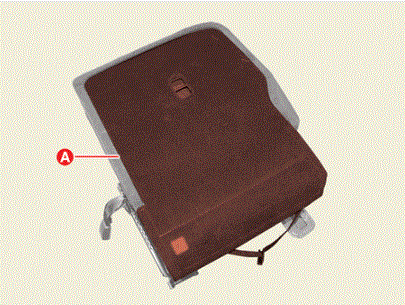

Remove the second row seat back pad assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

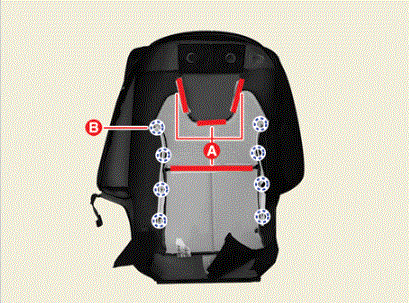

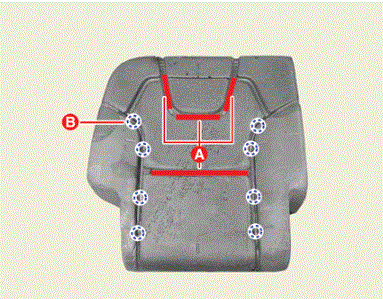

Remove the velcro tapes (A) and the hog ring clips (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

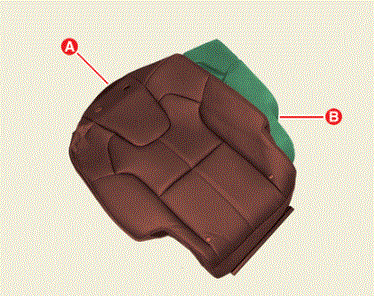

Remove the second row seat back cover (A) from the second row seat back pad (B).

G00639721

Courtesy of KIA MOTORS AMERICA, INC.
