[Driver's side]

Remove the driver's side second row seat assembly [6:4].
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

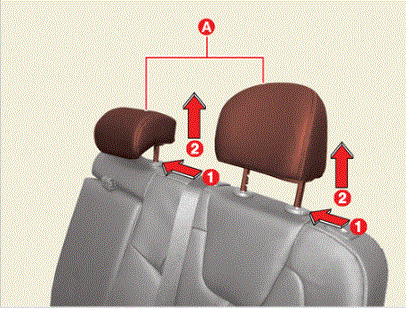

Remove the headrests (A).
1. Press the hooks in the direction of the arrows (1).
2. Remove the headrests (A) by pulling it in the direction of the arrows (1).
Courtesy of KIA MOTORS AMERICA, INC.
Remove the headrest guides (A) in the direction of the arrows.

Courtesy of KIA MOTORS AMERICA, INC.

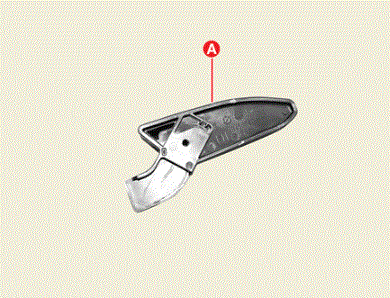

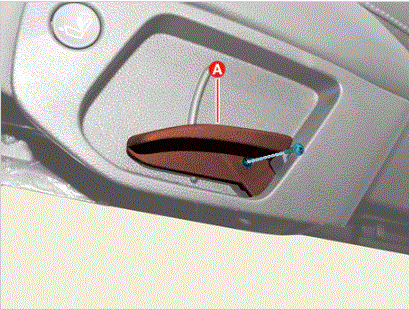

Remove the second row seat recliner knob (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

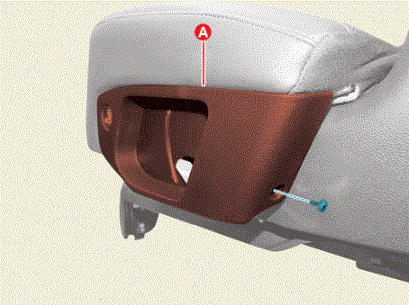

Remove the second row seat cushion lever garnish (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

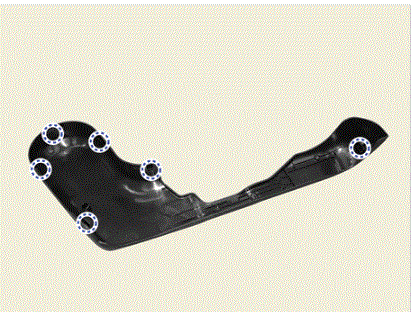

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

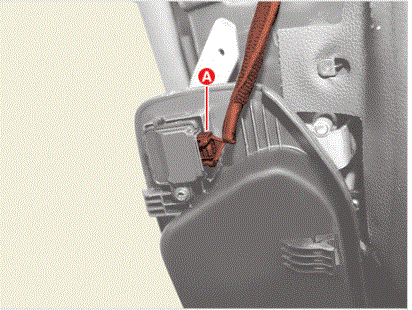

Disconnect the walk-in switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

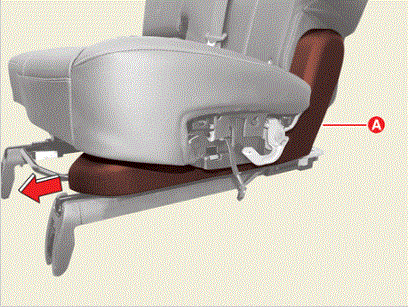

Remove the second row seat cushion shield outer cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

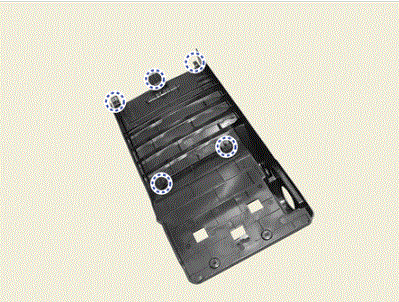

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Remove the second row seat cushion shield inner cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

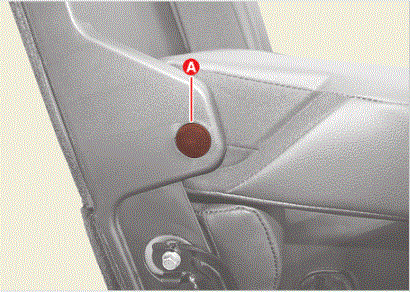

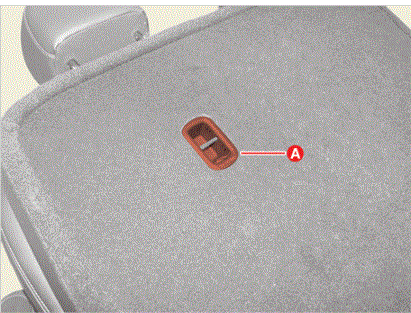

Remove the rear back armrest board cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

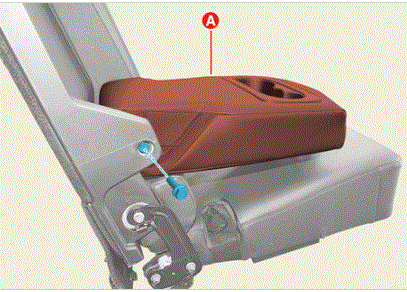

Remove the second row seat armrest assembly (A) after removing the bolt.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the second row seat lower protectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

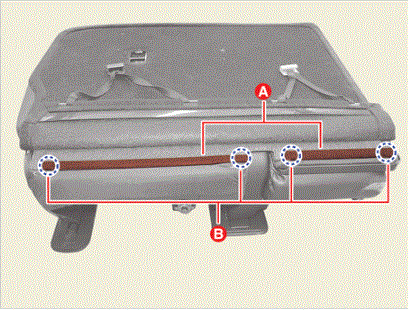

Remove the protectors (A) and clips (B).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

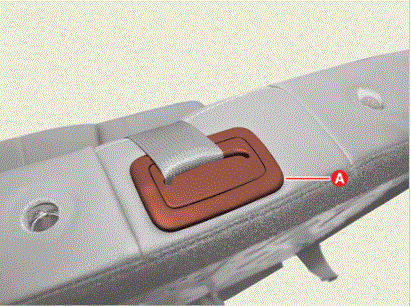

Remove the tether garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

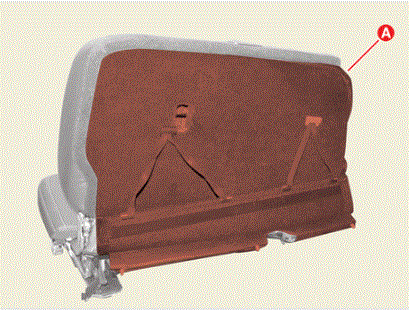

Remove the second row seat back mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

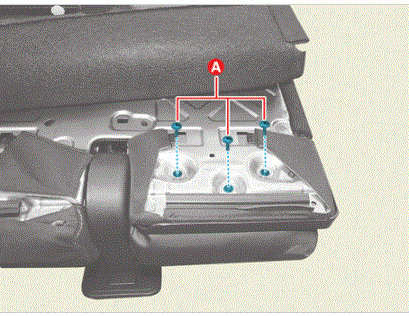

Remove the second row seat lower armrest screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

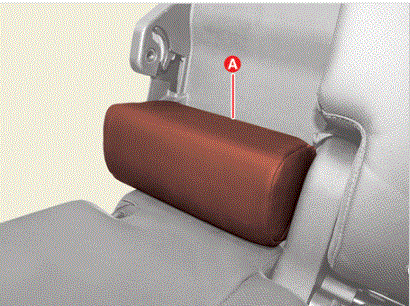

Remove the second row seat lower armrest assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

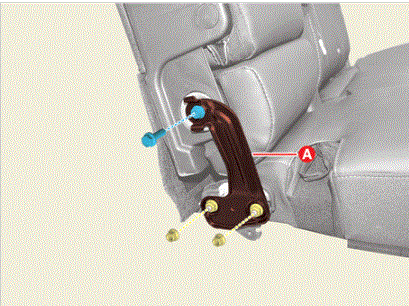

Remove the second row seat center hinge mounting bracket assembly (A) after removing the bolt and nuts.
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

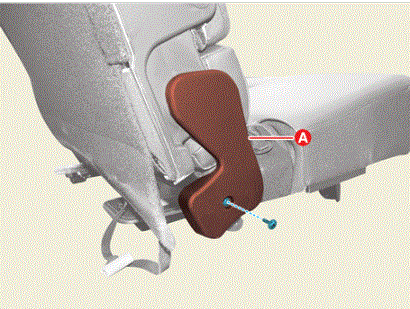

Remove the second row seat armrest mounting cover (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

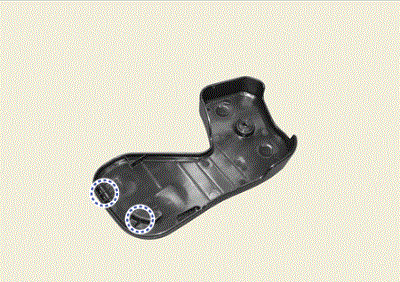

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Remove the second row seat back lower protectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the webbing guide cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

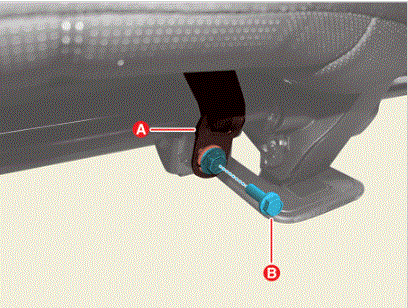

Separate the second row seat center belt (A) after removing the bolt (B).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

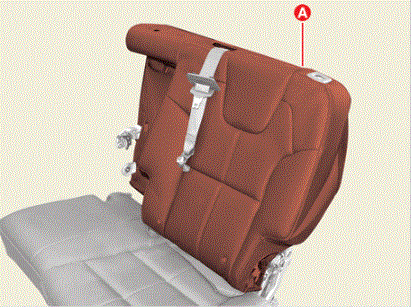

Remove the second row seat back pad assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

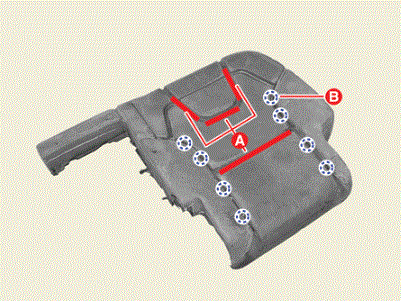

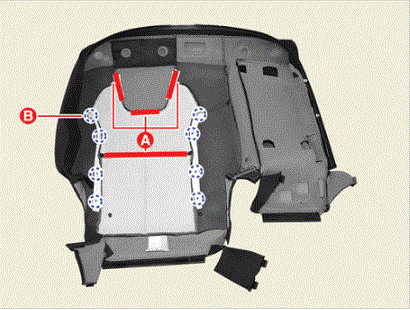

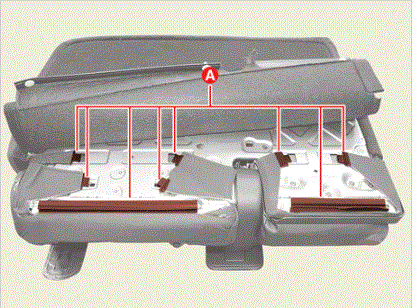

Remove the velcro tapes (A) and the hog ring clips (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

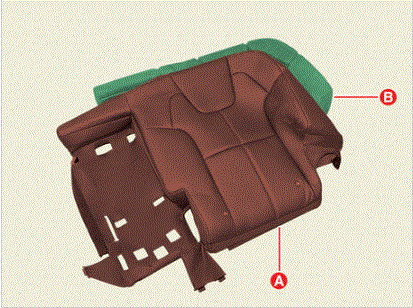

Remove the second row seat back cover (A) from the second row seat back pad (B).

Courtesy of KIA MOTORS AMERICA, INC.
