Second Row Seat Assembly [5:5]

Remove the second row seat assembly [5:5].
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

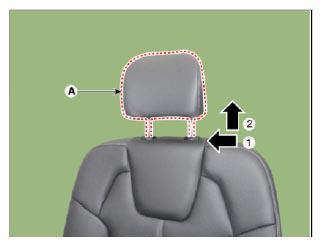

Remove the headrest (A).
1. Press the hook in the direction of the arrow (1).
2. Remove the headrest (A) by pulling it in the direction of the arrow (2).
Courtesy of KIA MOTORS AMERICA, INC.

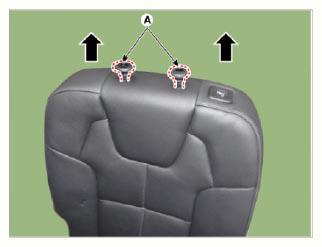

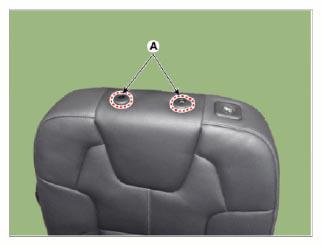

Remove the headrest guides (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the recliner knob (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the lever garnish (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

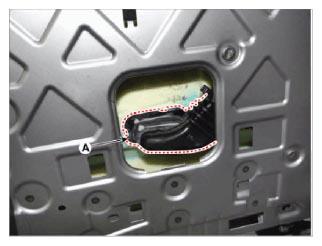

Disconnect the walk-in switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

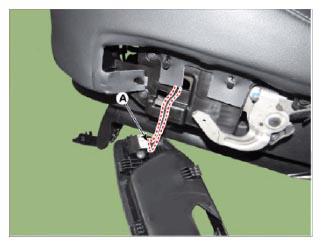

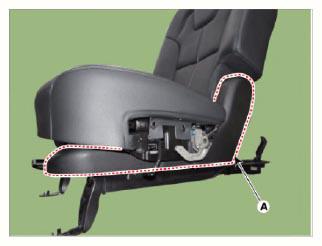

Remove the seat cushion shield outer cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

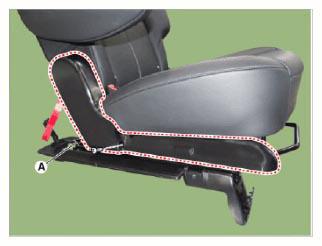

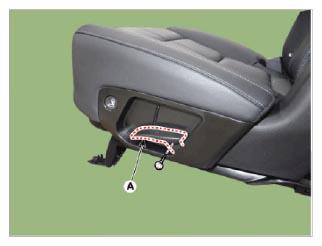

Remove the seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

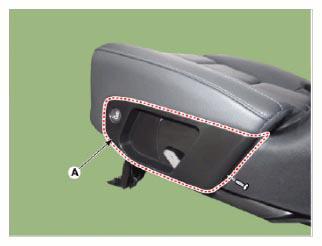

Remove the seat cushion shield inner cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

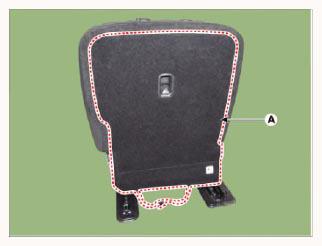

Remove the seat back mat (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

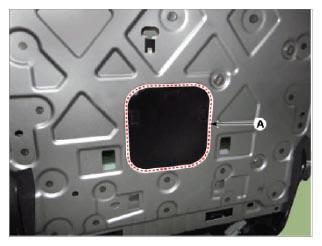

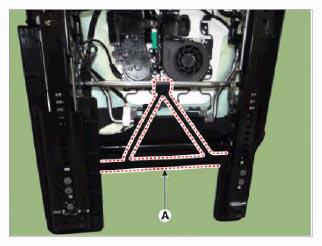

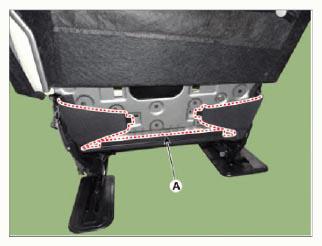

Remove the seat back lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the seat heater connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the seat back frame cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

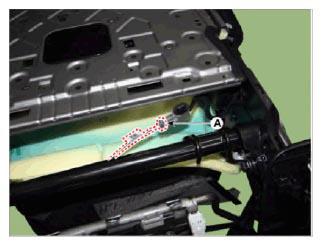

Remove the seat back ventilation duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

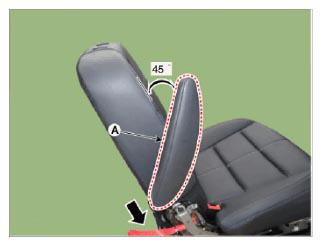

Remove the armrest (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove the armrest in the direction of the arrow at a 37° ± 5° angle.

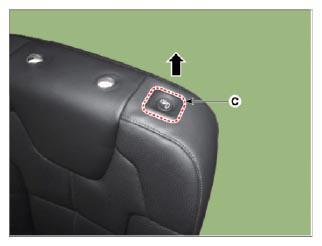

Remove the walk-in switch.
1. Disconnect the connector (A) after turning the seat back cover over.
2. Remove the walk-in switch (C) upward by releasing the hook (B).
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

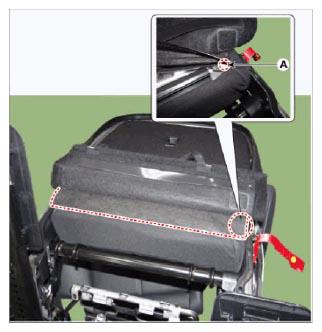

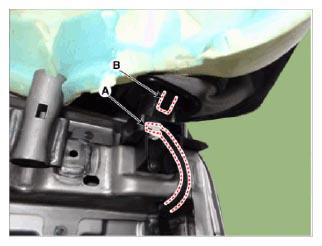

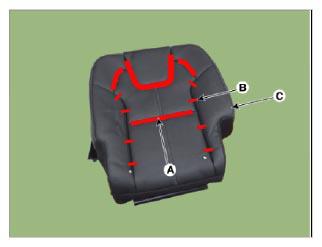

Remove the velcro tape (A) and hog ring clips (B) from the inside of the seat back cover (C).

Courtesy of KIA MOTORS AMERICA, INC.

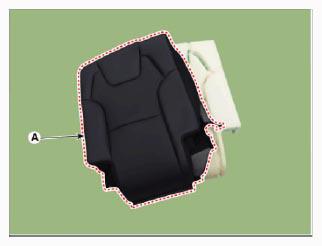

Remove the second row seat back cover (A) from the second row seat back pad.

G15710009
