Second Row Seat Assembly [5:5]

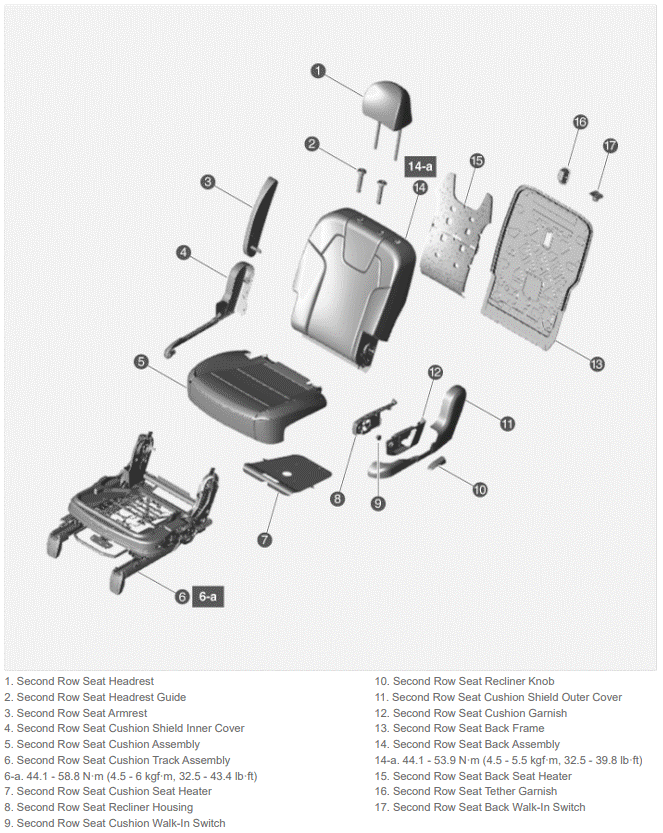

Fig 1: Second Row Seat Assembly Components Location With Torque Specification (5-5)

G15709958

Courtesy of KIA MOTORS AMERICA, INC.
