System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below
G15720285Courtesy of KIA MOTORS AMERICA, INC.

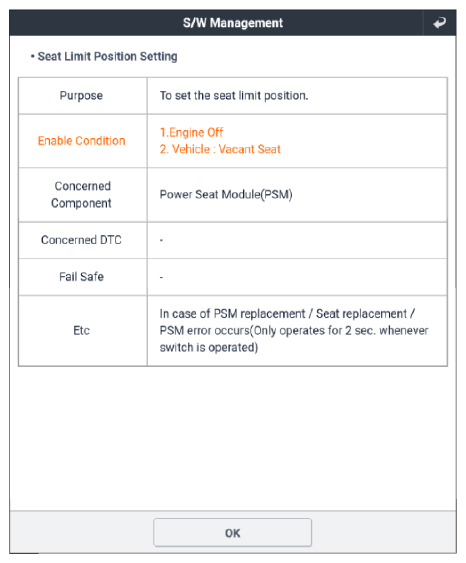

G15720286Courtesy of KIA MOTORS AMERICA, INC.

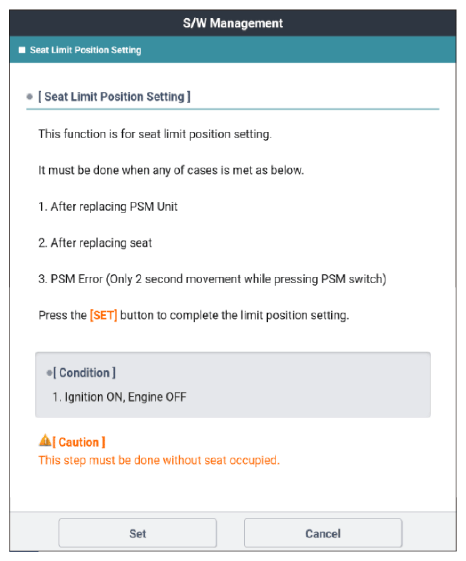

G15720287Courtesy of KIA MOTORS AMERICA, INC.
G15720288Courtesy of KIA MOTORS AMERICA, INC.

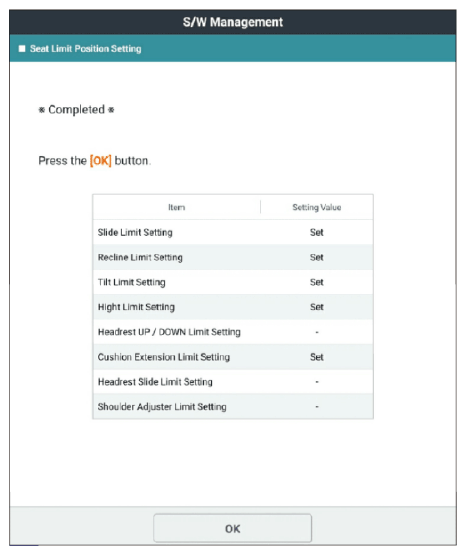

G15720289Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
