Removal & Installation: Removal

  1. Remove the front seat assembly [Driver's seat].

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

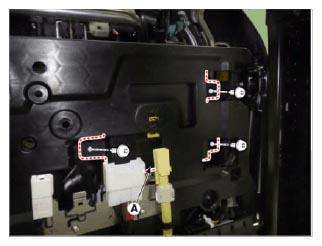

  2. Remove the Integrated Memory Seat (IMS) unit (A) after removing the screws.
    G15710229Courtesy of KIA MOTORS AMERICA, INC.

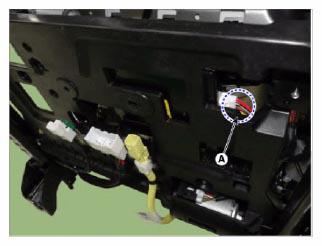

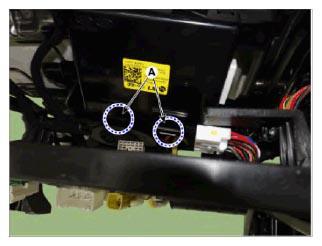

  3. Disconnect the IMS unit connectors (A).
G15710230Courtesy of KIA MOTORS AMERICA, INC.
G15710231Courtesy of KIA MOTORS AMERICA, INC.
