Removal & Installation: Removal

  1. Remove the front door trim [Driver's side].

    (Refer to Body - "FRONT DOOR TRIM ")

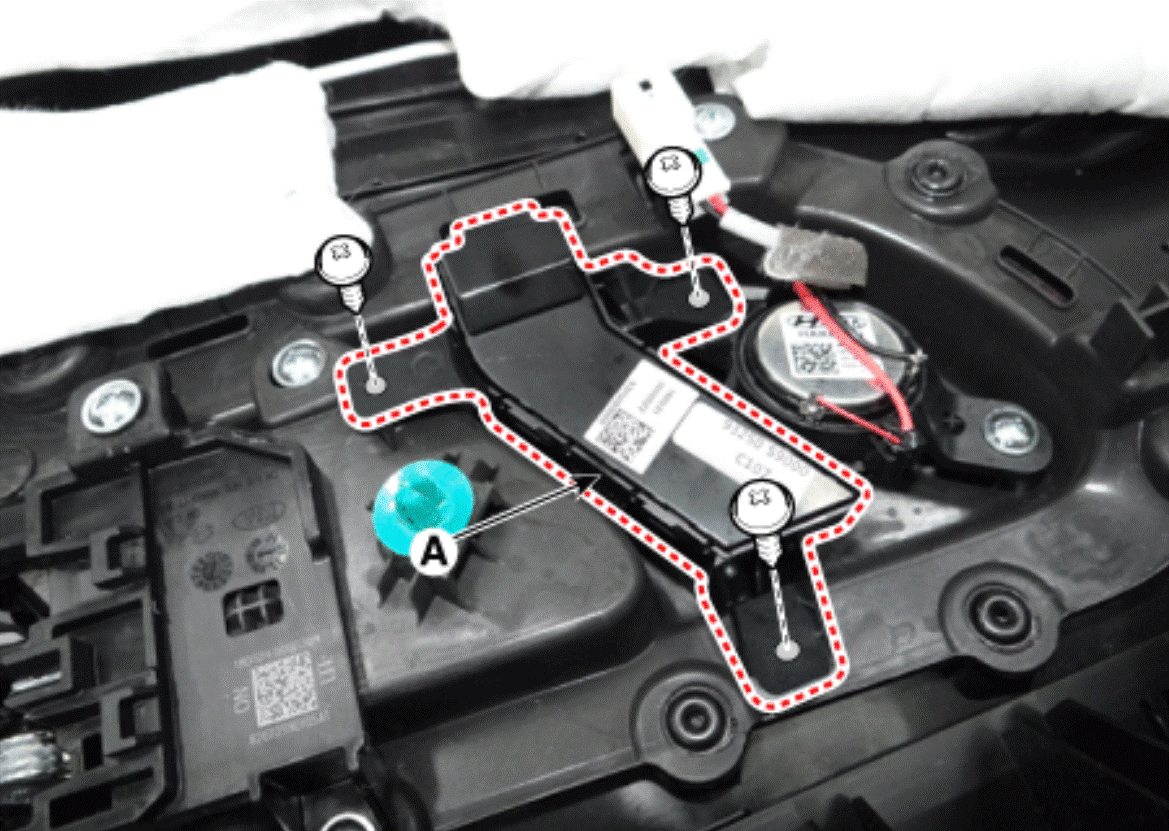

  2. Remove the Integrated Memory Seat (IMS) switch (A) after removing the screws.
G15710233Courtesy of KIA MOTORS AMERICA, INC.
