Integrated Memory Seat (IMS) Switch: Inspection

1. Remove the front door trim [Driver's Side].

   (Refer to Body - "FRONT DOOR TRIM ")

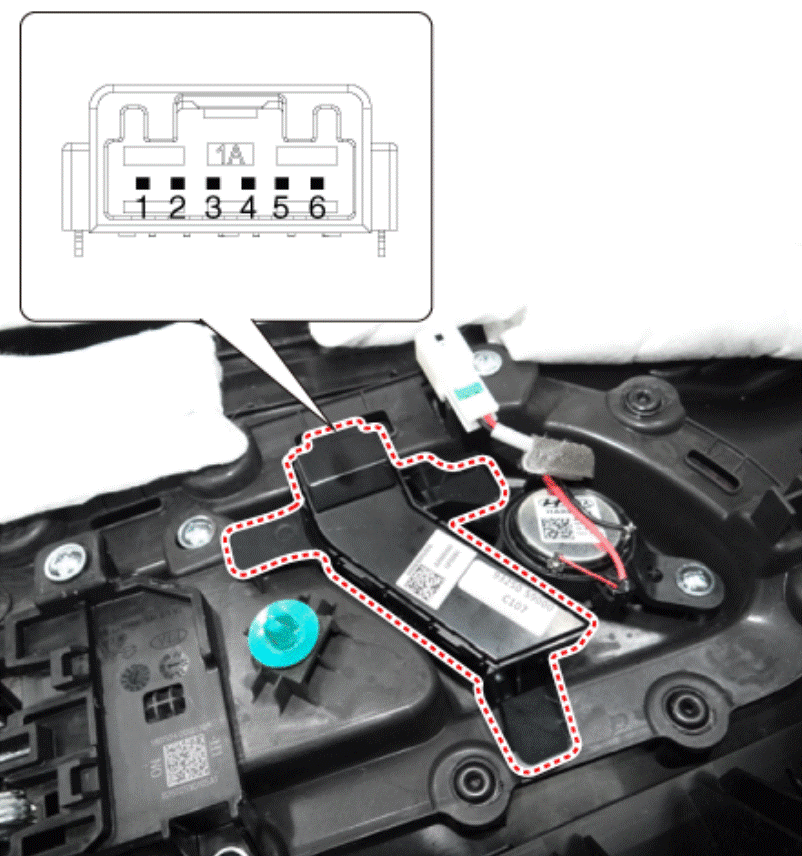

2. When each switch is pressed, check the continuity between integrated memory seat switch connector and ground.

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Terminal	Resistance (KΩ) (±1%)
SET	3 - 5	0.68
Memory 1		1.5
Memory 2		3.3
