Connector And Terminal Information

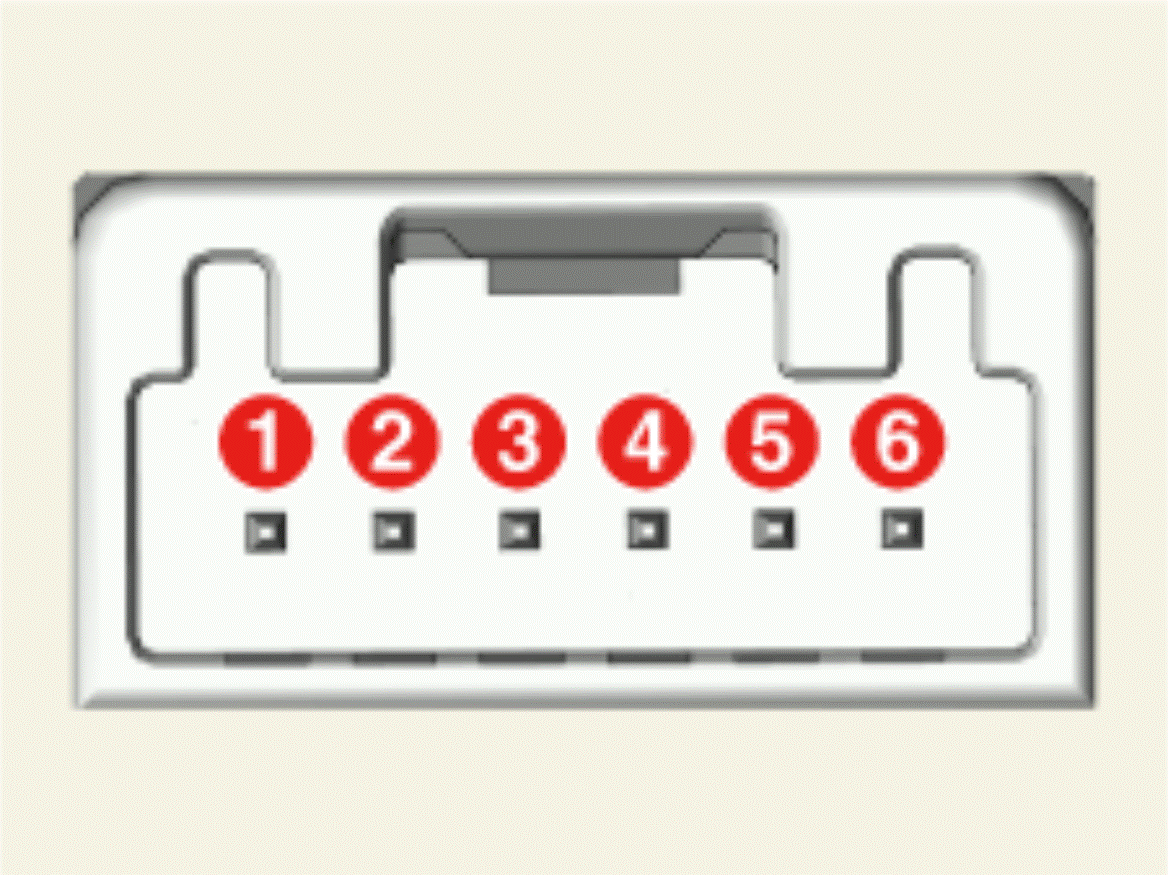

Connector A Terminal Function
G15710232Courtesy of KIA MOTORS AMERICA, INC.
 1 Illumination (+)
2 -
3 Driver's IMS switch
4 -
5 Ground
6 Illumination (-)
