Shield Front Cover

  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

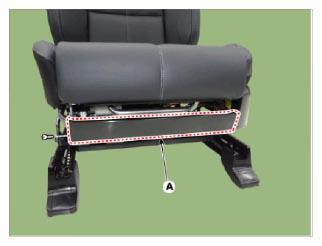

  2. Remove the front seat shield front cover (A) after removing the screw.
G15709927Courtesy of KIA MOTORS AMERICA, INC.
