Removal & Installation: Removal

  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

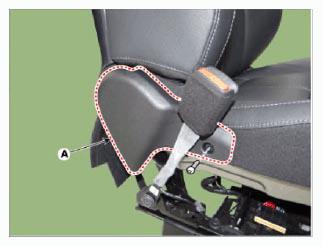

  2. Remove the shield inner cover (A) after removing the screw.
G15709930Courtesy of KIA MOTORS AMERICA, INC.
