Front Seat Cushion Frame
- Remove the front seat cushion assembly from the front seat cushion frame.
(Refer to Front Seat - "FRONT SEAT CUSHION COVER ")

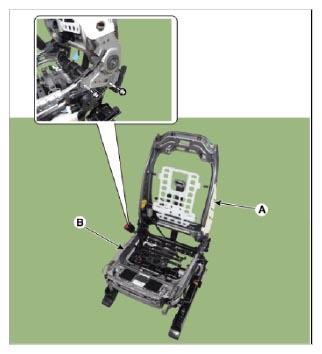

- Remove the front seat cushion frame (B) form the front seat back frame (A) after removing the bolts.
Tightening torque:
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)
