Front Seat Back Frame
- Remove the lumbar support.
(Refer to Front Seat - "LUMBAR SUPPORT ")
- Remove the Side Airbag (SAB) module.
(Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

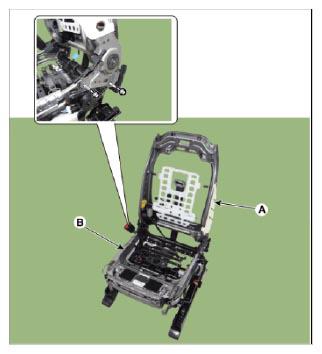

- Remove the front seat back frame (A) form the front seat cushion frame (B) after removing the bolts.
Tightening torque:
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)
