Removal & Installation: Removal

Remove the front seat outer shield cover.
(Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")
Remove the front seat shield inner cover.
(Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

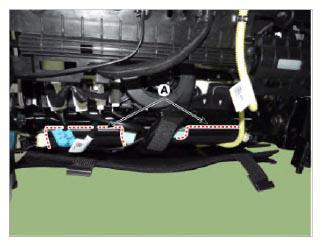

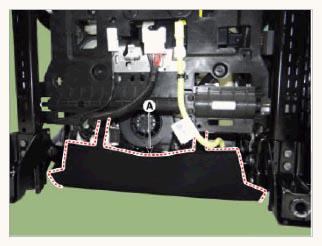

Remove the front seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

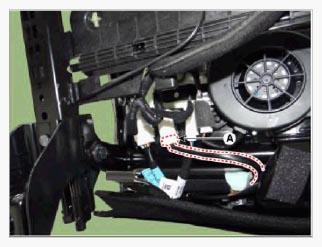

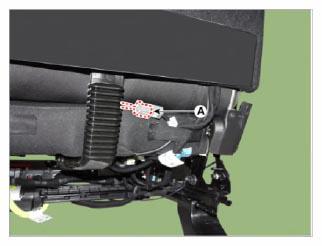

Disconnect the front seat connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

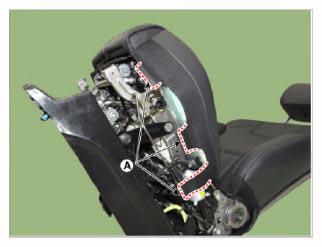

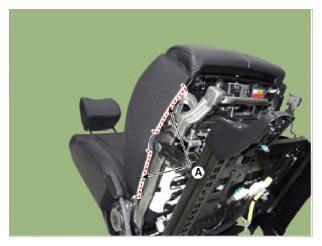

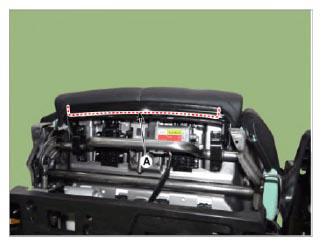

Remove the protectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

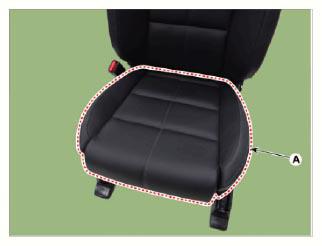

Remove the front seat cushion assembly (A) from the front seat cushion frame.

Courtesy of KIA MOTORS AMERICA, INC.

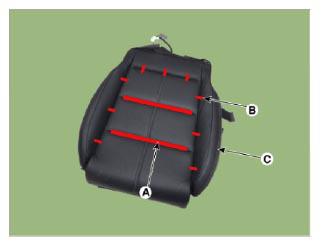

Remove the velcro tape (A) and hog ring clips (B) from the inside of the front seat cushion cover (C).
NOTE: Be careful not to leave pads and insert wires and applix.

Courtesy of KIA MOTORS AMERICA, INC.

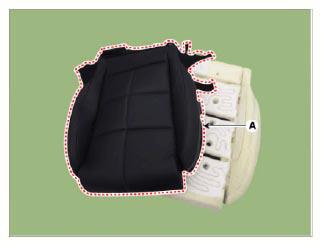

Remove the front seat cushion cover (A) from the front seat cushion pad.

Courtesy of KIA MOTORS AMERICA, INC.
