Removal & Installation: Removal

  1. Remove the tailgate weatherstrip.

    (Refer to Tailgate - "TAILGATE WEATHERSTRIP ")

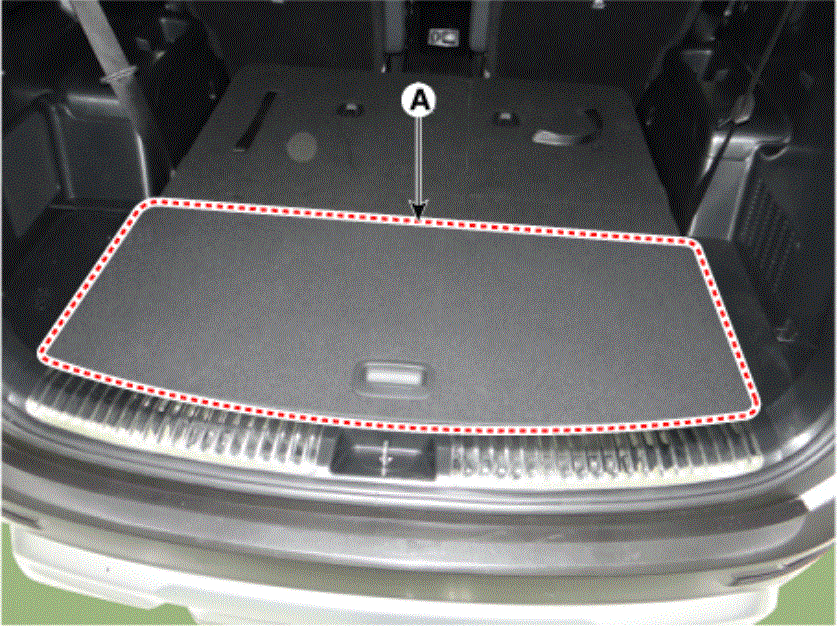

  2. Remove the luggage covering board (A).
    G15709840Courtesy of KIA MOTORS AMERICA, INC.

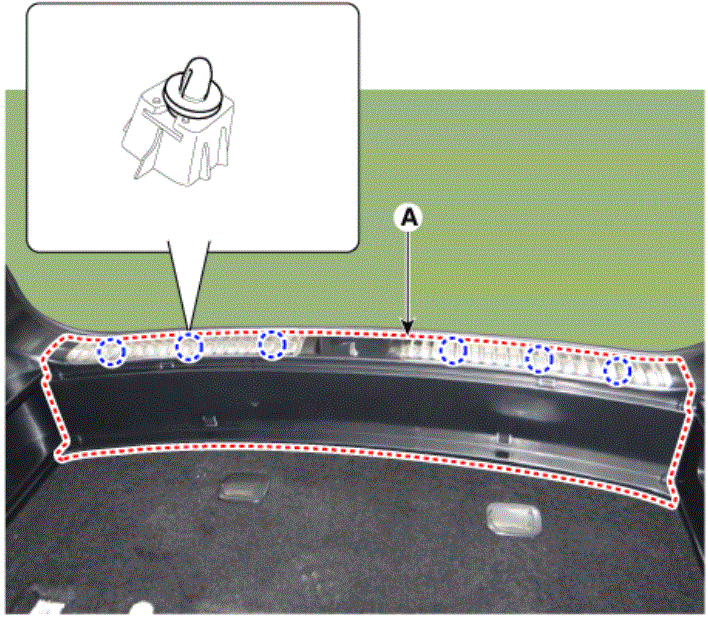

  3. Remove the rear transverse trim (A).
G15709841Courtesy of KIA MOTORS AMERICA, INC.
