Removal & Installation: Removal

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the rear transverse trim.
(Refer to Tailgate Trim - "REAR TRANSVERSE TRIM ")

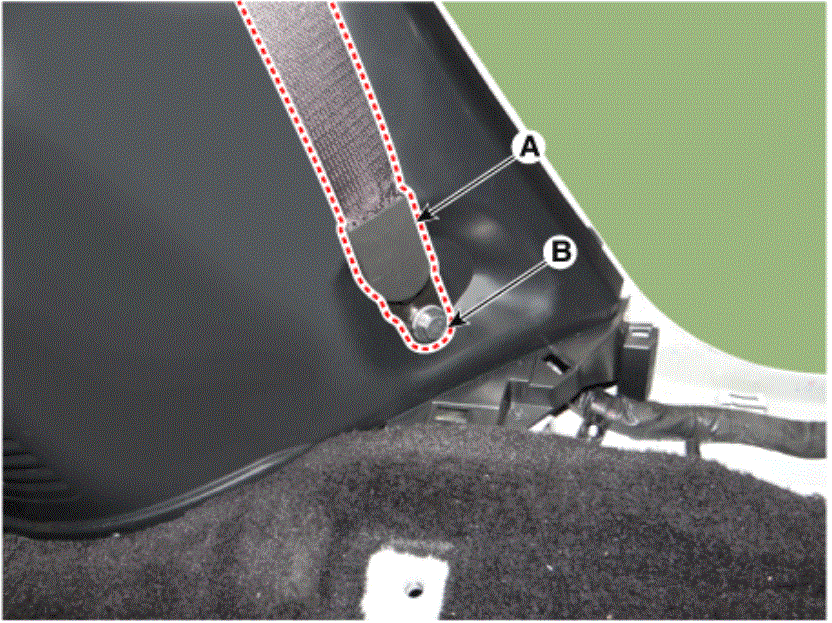

Separate the second row seat belt lower anchor (B) by removing the bolt after lifting the cover (A).
Tightening torque:

39.2 - 53.9 N.m (4 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

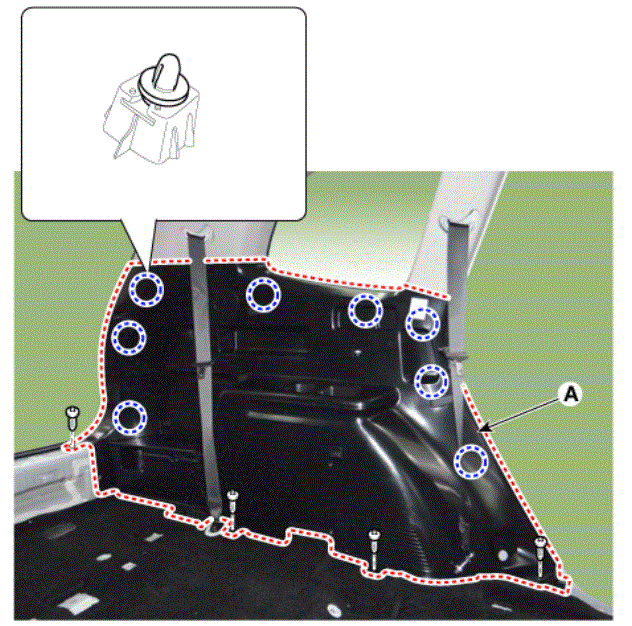

Remove the luggage side trim (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

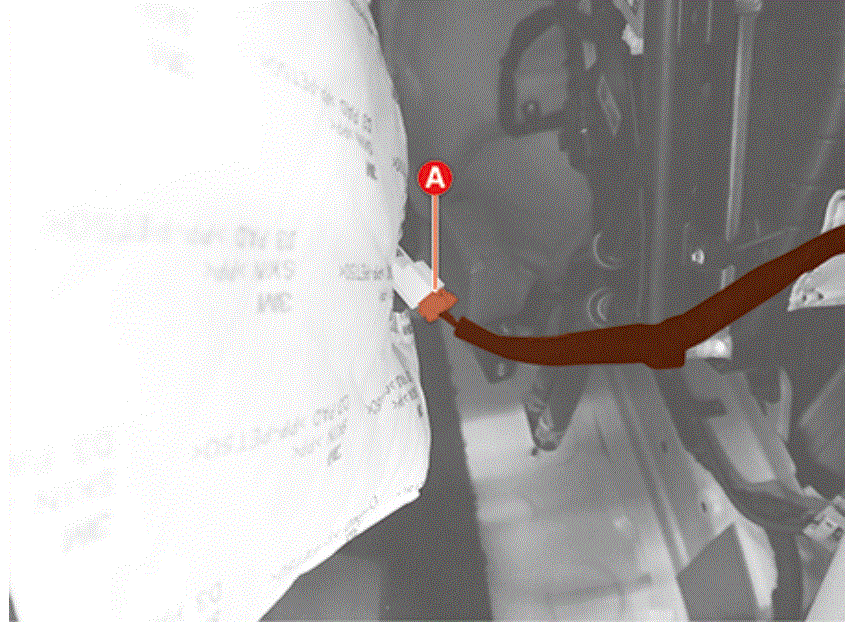

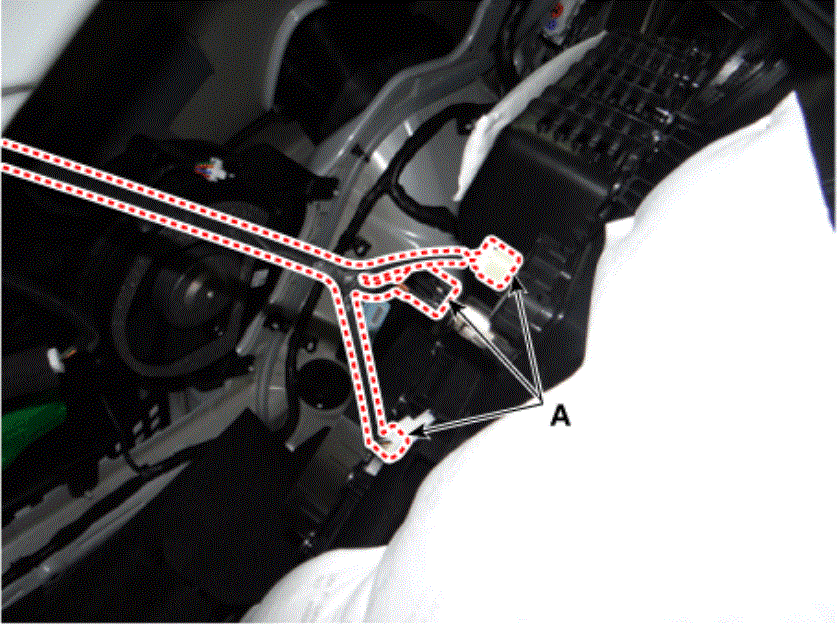

Disconnect the luggage side trim connectors (A).
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.
