Removal & Installation: Removal

  1. Remove the front seat.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - " FRONT PILLAR TRIM  ")

  4. Remove the center pillar upper trim.

    (Refer to Interior Trim - " CENTER PILLAR TRIM  ")

  5. Remove the rear pillar trim and gate pillar trim.

    (Refer to Interior Trim - " REAR PILLAR TRIM  ")

  6. Remove the sunvisor and retainer.

    (Refer to Roof Trim - " SUNVISOR  ")

  7. Remove the assist handle.

    (Refer to Roof Trim - " ASSIST HANDLE  ")

  8. Remove the overhead console lamp.

    (Refer to Body Electrical System - " OVERHEAD CONSOLE LAMP  ")

  9. Remove the room lamp.

    (Refer to Body Electrical System - " ROOM LAMP  ")

  10. Remove the cargo lamp.

    (Refer to Body Electrical System - " CARGO LAMP  ")

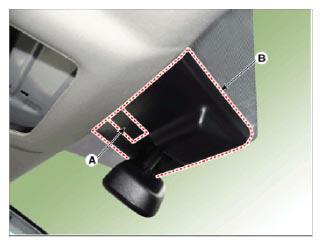

  11. Remove the multi sensor blanking cover (A) and the multi sensor cover (B).
    G15709829Courtesy of KIA MOTORS AMERICA, INC.

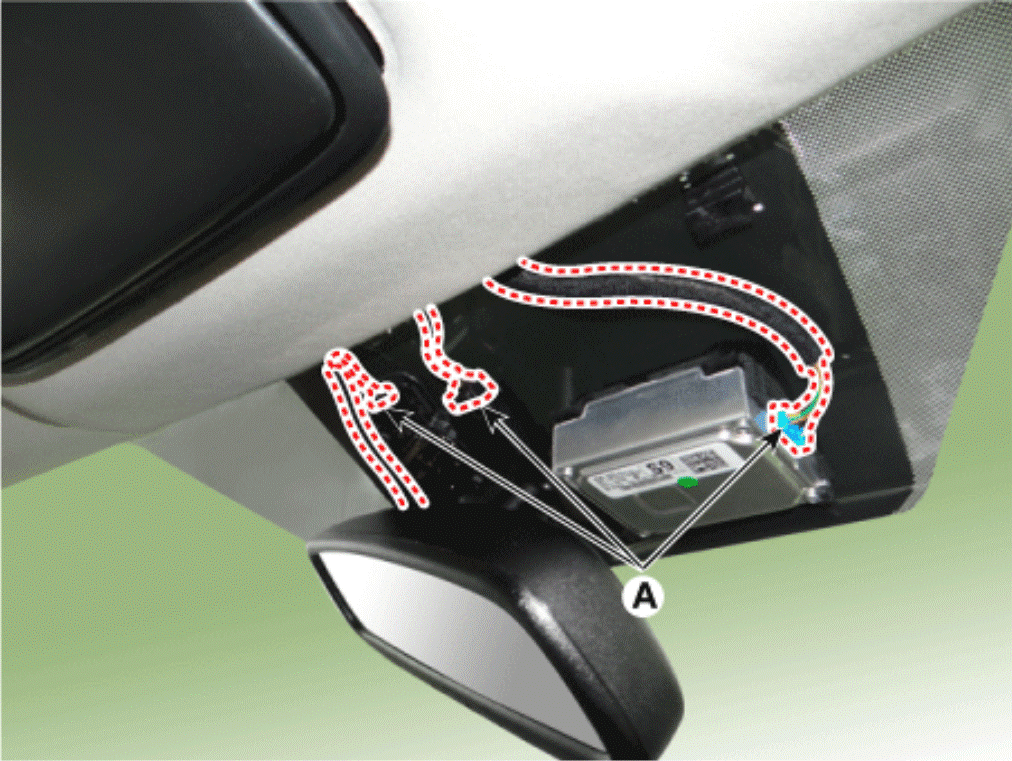

  12. Disconnect the connectors (A).
    G15709830Courtesy of KIA MOTORS AMERICA, INC.

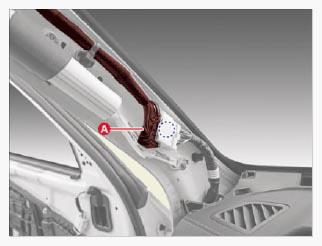

  13. Disconnect the roof trim connector (A).
    G15709831Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15335396Courtesy of KIA MOTORS AMERICA, INC.

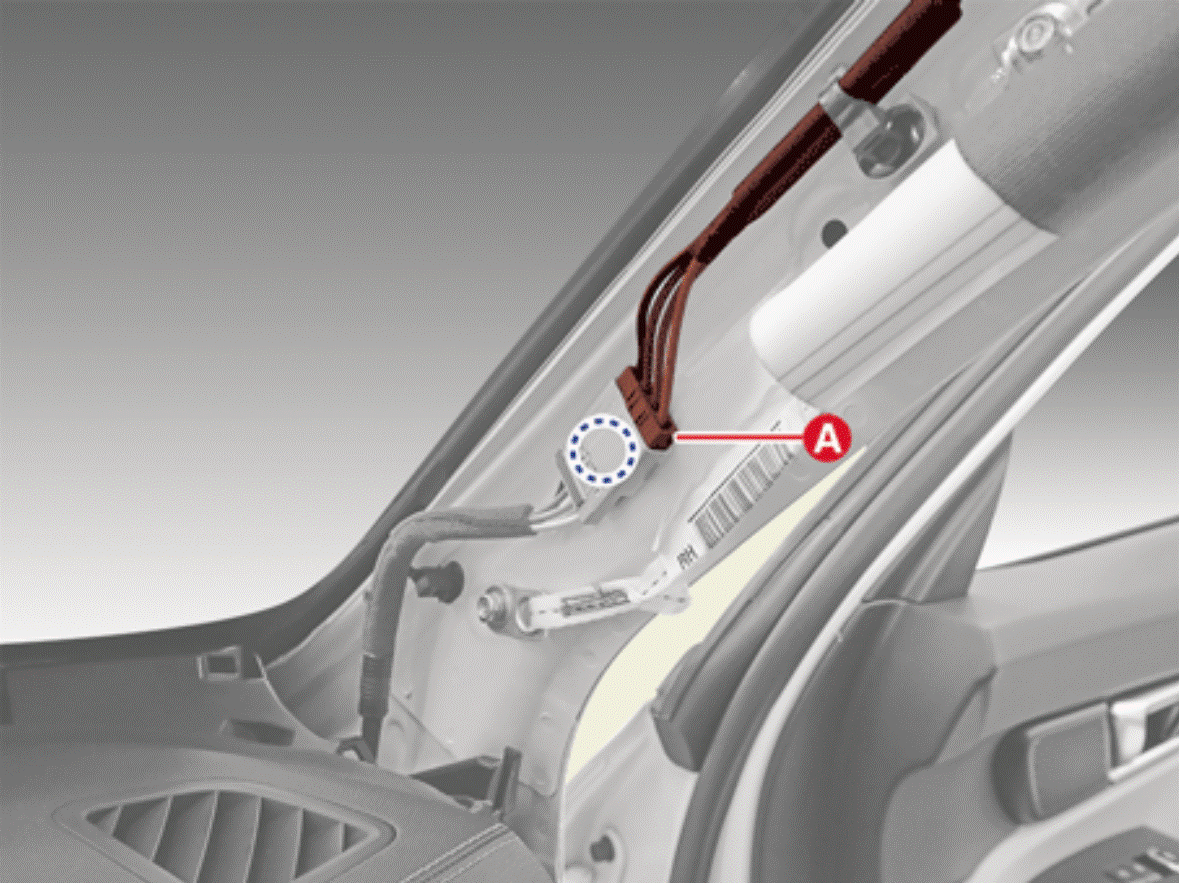

  14. Disconnect the roof antenna connector (A).
    G15709832Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15335397Courtesy of KIA MOTORS AMERICA, INC.

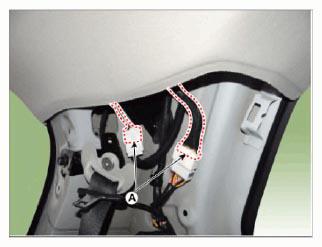

  15. Disconnect the connectors (A).
    G15709833Courtesy of KIA MOTORS AMERICA, INC.

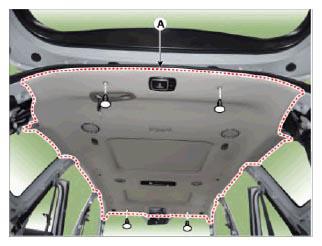

  16. Remove the roof trim assembly (A) after removing the clips.
    G15709834Courtesy of KIA MOTORS AMERICA, INC.

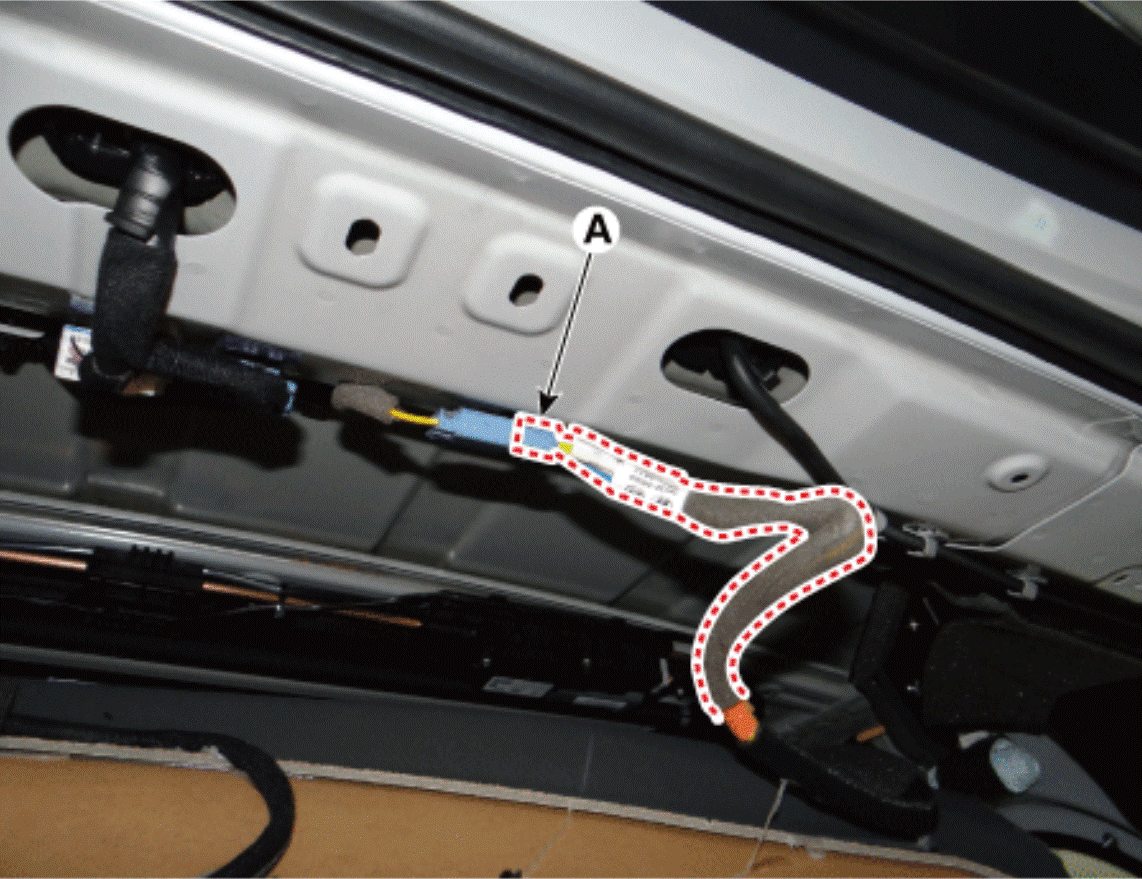

  17. Disconnect the roof antenna connector (A).
    G15709835Courtesy of KIA MOTORS AMERICA, INC.

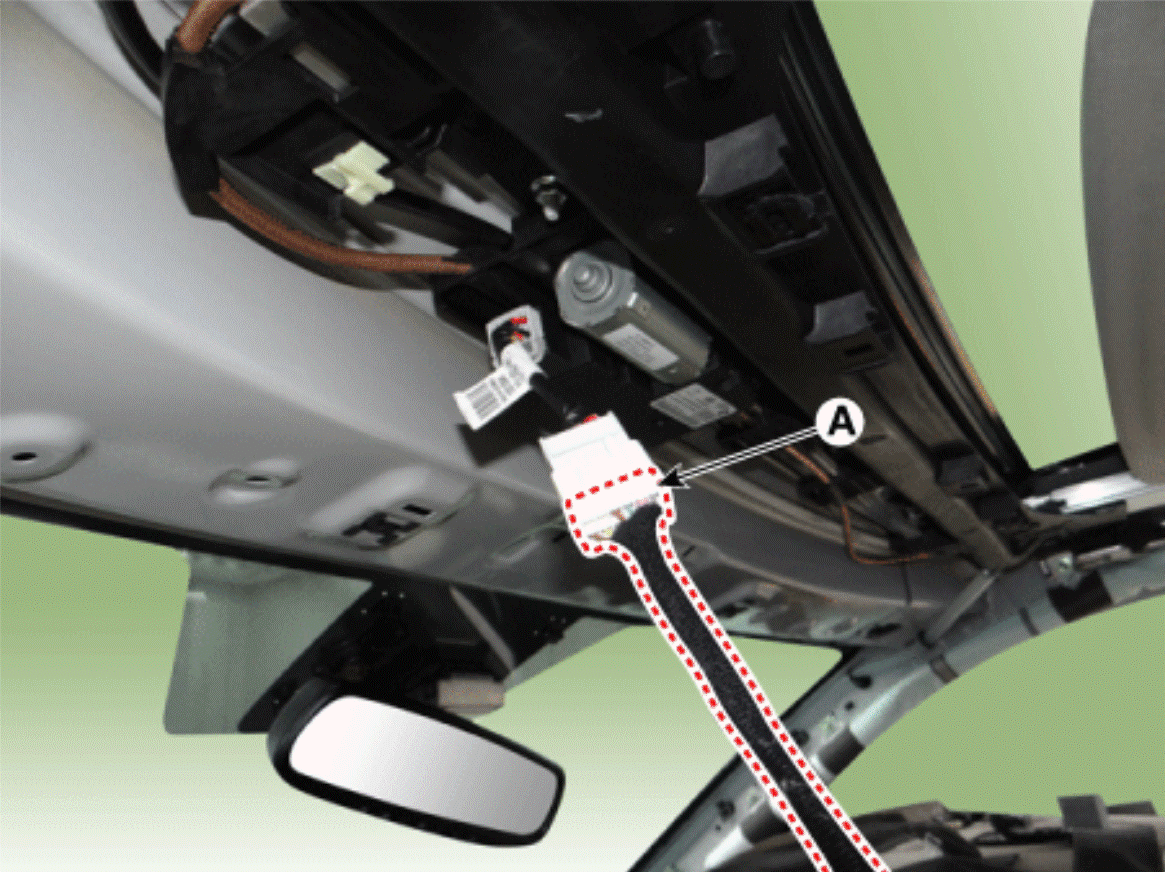

  18. Disconnect the sunroof motor connector (A).
    G15709836Courtesy of KIA MOTORS AMERICA, INC.

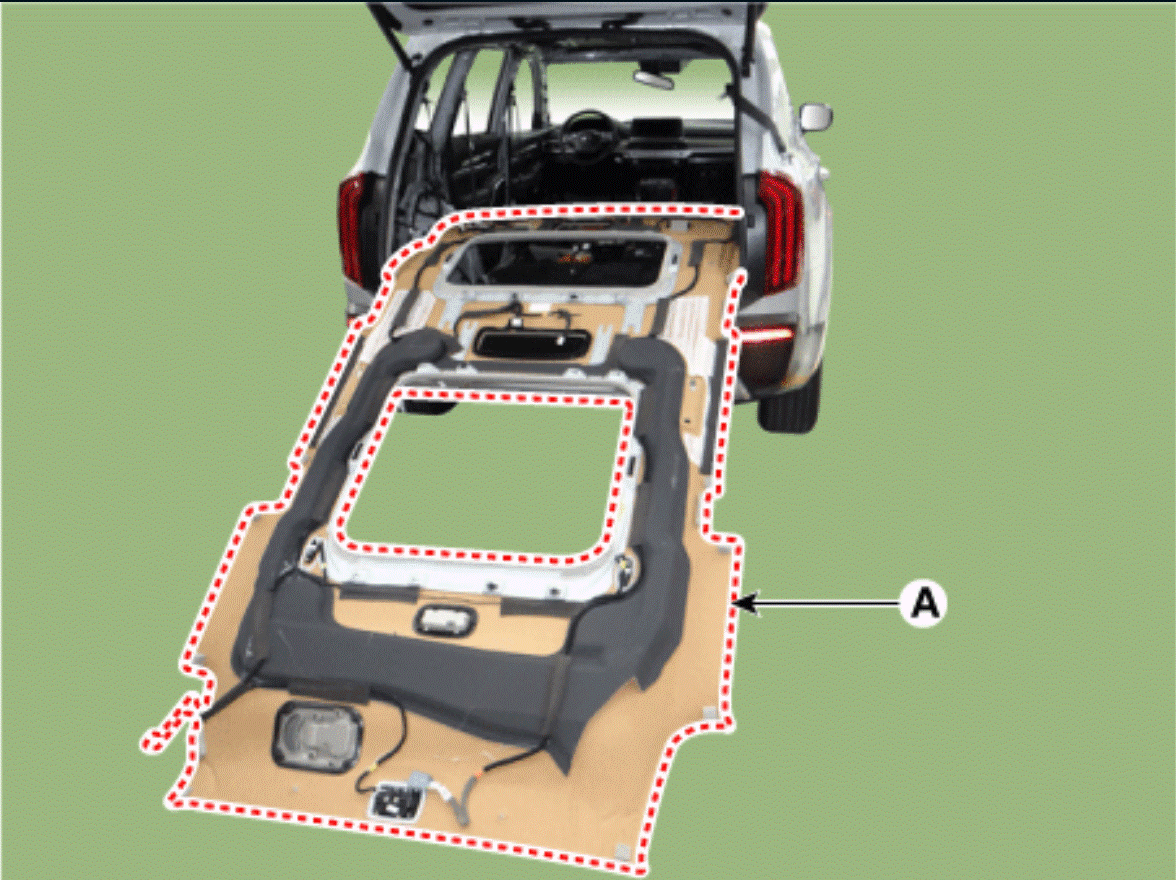

  19. Remove the roof trim assembly (A) from the vehicle through the tailgate.
    G15709837Courtesy of KIA MOTORS AMERICA, INC.

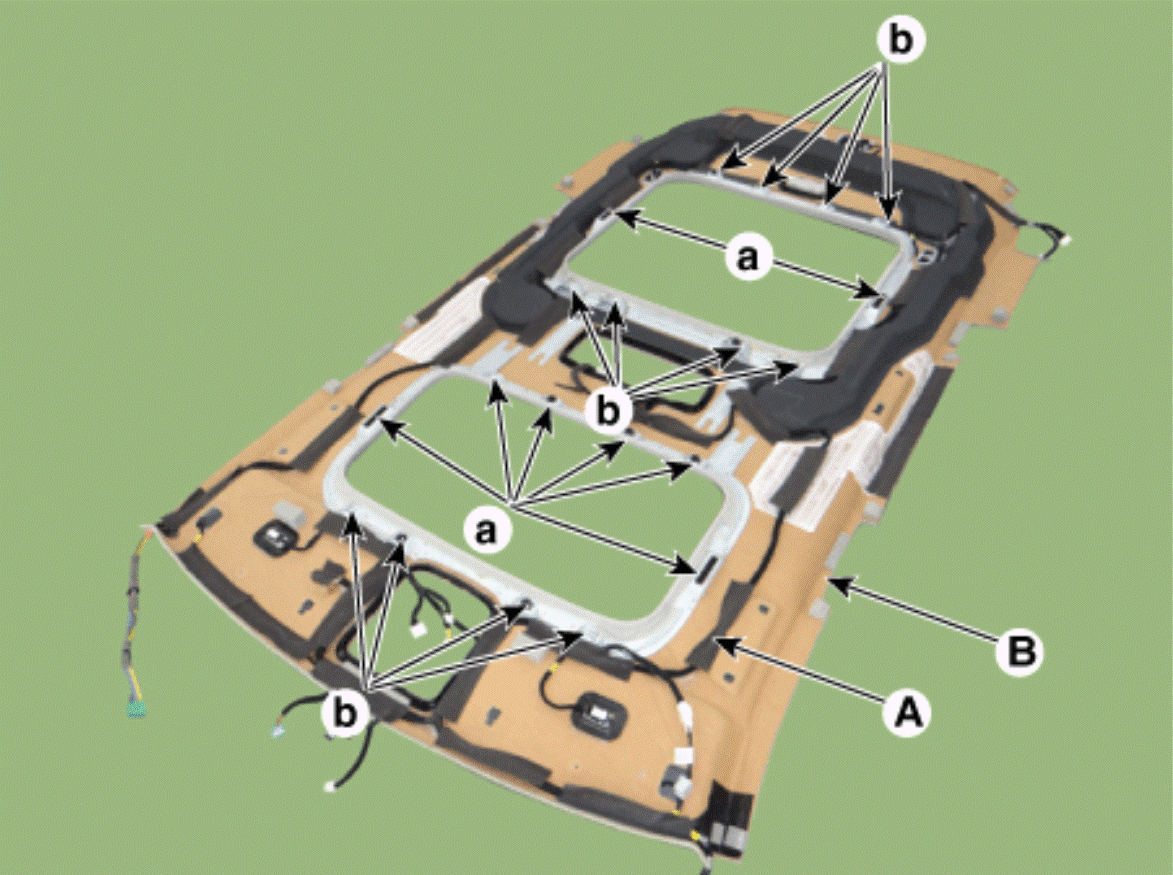

  20. Remove roof trim wiring harness (A) from the roof trim (B).
G15709838Courtesy of KIA MOTORS AMERICA, INC.
