Removal & Installation: Removal
- Remove the roof trim assembly.
(Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")

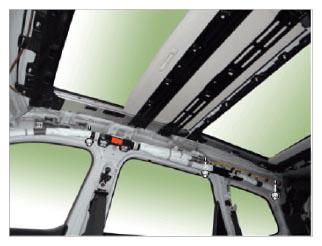

- Remove the roof rack nuts.
Tightening torque:
10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8 - 10.8 lb.ft)

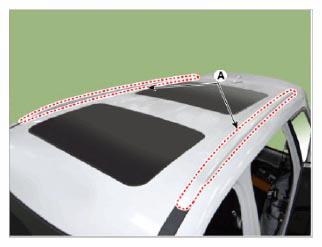

- Remove the roof rack (A).
(Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")
Tightening torque:
10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8 - 10.8 lb.ft)
