Removal & Installation: Removal

  1. Remove the rear wheel and tires.

    (Refer to Suspension System - "WHEEL ")

  2. Remove the rear mud guard.

    (Refer to Body Side Molding - "MUD GUARD ")

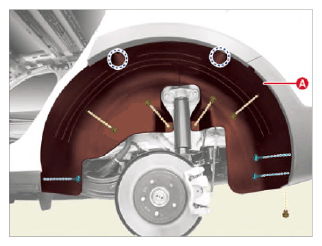

  3. Remove the rear wheel guard after removing the clips and screws.
    G15709642Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15335342Courtesy of KIA MOTORS AMERICA, INC.
