Removal & Installation: Removal

Remove the tailgate lid upper trim.
(Refer to Tailgate - "TAILGATE LID TRIM ")

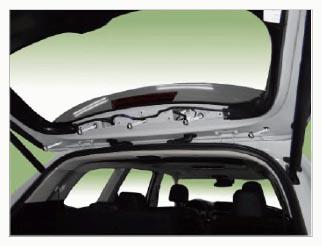

Separate the rear outer spoiler trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

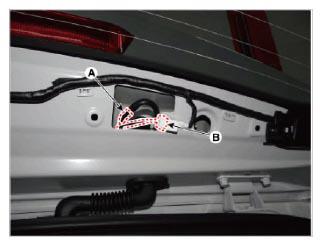

Disconnect the rear washer nozzle (A) and high mounted stop lamp connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

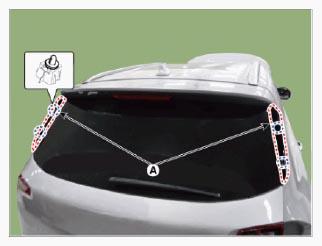

Remove the rear spoiler plug holes (A).

Courtesy of KIA MOTORS AMERICA, INC.

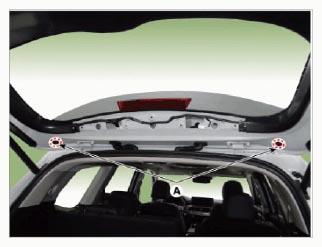

Remove the rear spoiler nuts.
Tightening torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

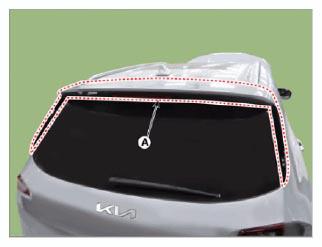

Remove the rear spoiler (A).

Courtesy of KIA MOTORS AMERICA, INC.
