Removal & Installation: Removal

1. Remove the front wheel and tires.

   (Refer to Suspension System - "WHEEL ")

2. Remove the front mud guard.

   (Refer to Body Side Molding - "MUD GUARD ")

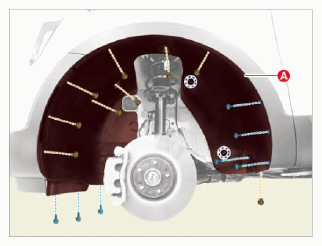

3. Remove the front wheel guard (A) after removing the bolts, clips and screws.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
