Removal & Installation: Removal

  1. Remove the front wheel guard.

    (Refer to Body Side Molding - "FRONT WHEEL GUARD ")

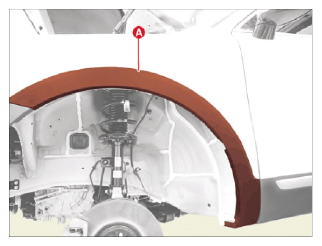

  2. Remove the fender garnish (A).
    G15709662Courtesy of KIA MOTORS AMERICA, INC.
    G15709663Courtesy of KIA MOTORS AMERICA, INC.

    Information

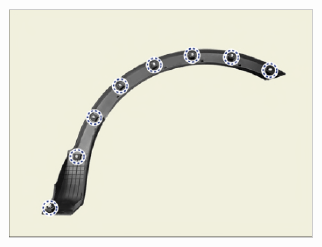

    Clip position:

G15335357Courtesy of KIA MOTORS AMERICA, INC.
