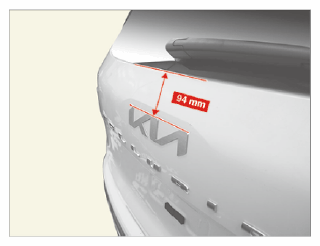

Emblem Attachment Location

Standard of measurement: Top of the emblem from the top end of the tailgate garnish (vehicle center)
Length considering curved surface: 94 mm (3.7 in)

Courtesy of KIA MOTORS AMERICA, INC.
