Power Tailgate Inner Switch

  1. Disconnect the battery negative (-) terminal.

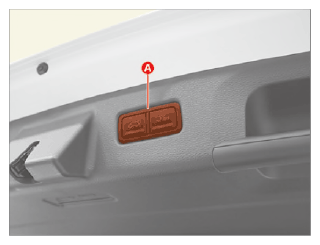

  2. Remove the power tailgate inner switch (A).
    G15709536Courtesy of KIA MOTORS AMERICA, INC.

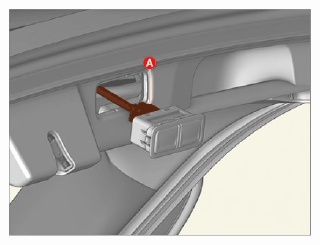

  3. Disconnect the power tailgate inner switch connector (A).
G15709537Courtesy of KIA MOTORS AMERICA, INC.
