Tailgate Lid Side Trim

  1. Remove the tailgate lid upper trim.

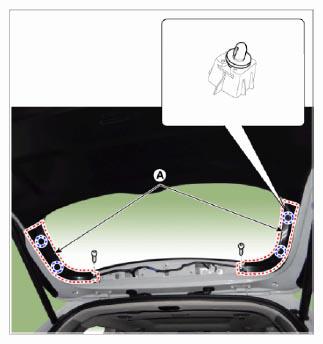

  2. Remove the tailgate lid side trims (A) after removing the screws.
G15709524Courtesy of KIA MOTORS AMERICA, INC.
