Tailgate Lid Lower Trim

  1. Remove the tailgate lid side trim.
  2. Remove the power tailgate inner switch.

    (Refer to Tailgate - "TAILGATE SWITCH ")

  3. Remove the tailgate lid grip handle (A).
    G15709525Courtesy of KIA MOTORS AMERICA, INC.

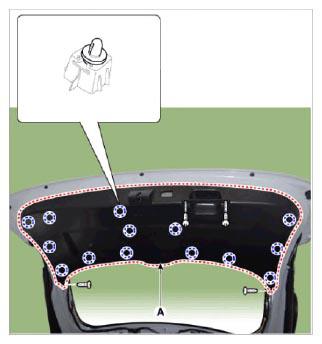

  4. Remove the tailgate lid lower trim (A) after removing the screws.
G15709526Courtesy of KIA MOTORS AMERICA, INC.
