Removal & Installation: Removal

Remove the driver's side luggage side trim.
(Refer to Tailgate Trim - "LUGGAGE SIDE TRIM ")

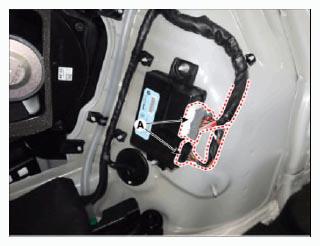

Disconnect the Power Tailgate Module (PTGM) connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

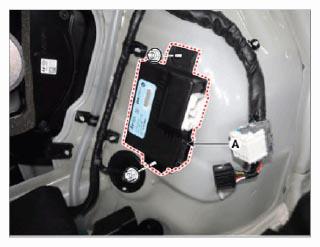

Remove the Power Tailgate Module (PTGM) (A) after removing the nuts.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
