Removal & Installation: Removal

  1. Remove the tailgate lid lower trim.

    (Refer to Body - "TAILGATE LID TRIM ")

  2. Disconnect the power tailgate strip connector (A).
    G15709540Courtesy of KIA MOTORS AMERICA, INC.

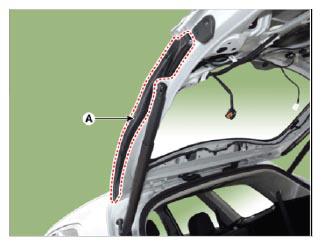

  3. Remove the power tailgate strip (A).
G15709541Courtesy of KIA MOTORS AMERICA, INC.
