Removal & Installation: Removal

  1. Remove the tailgate lid lower trim.

    (Refer to Tailgate - "TAILGATE LID TRIM ")

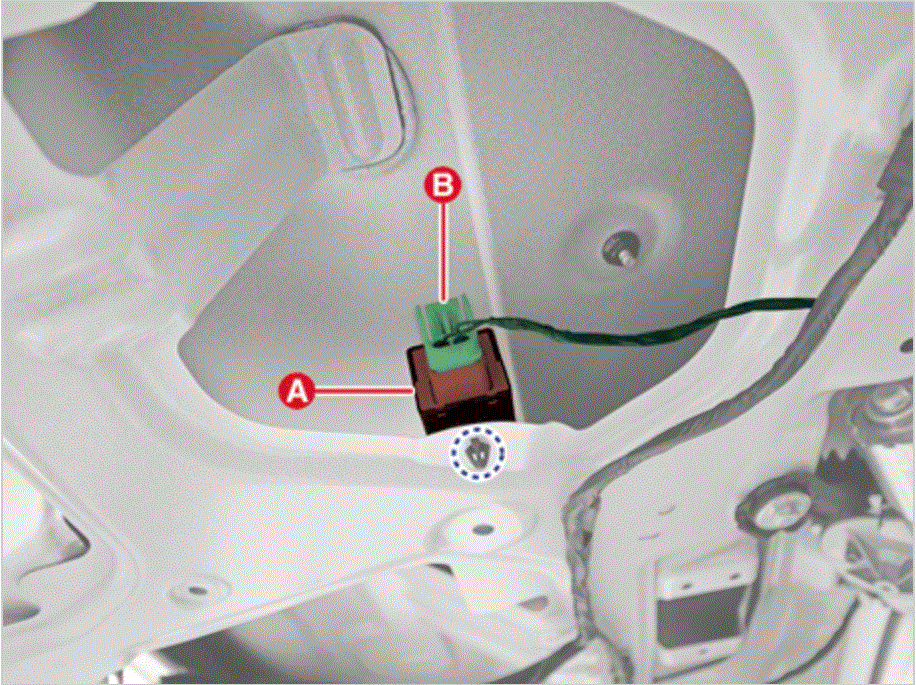

  2. Remove the buzzer (A) after disconnecting the connector (B).
    G00639606Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

G15329252Courtesy of KIA MOTORS AMERICA, INC.
