Removal & Installation: Removal

  1. Remove the rear bumper assembly.

    (Refer to Rear Bumper - "REAR BUMPER ASSEMBLY ")

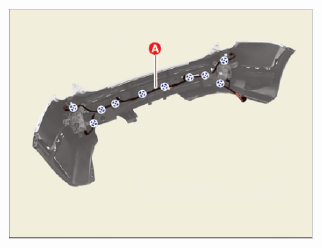

  2. Remove the rear bumper wiring harness (A).
    G15709919Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15335403Courtesy of KIA MOTORS AMERICA, INC.

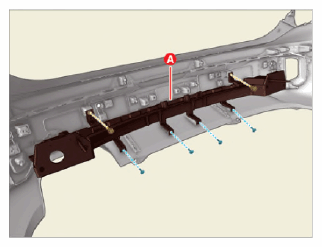

  3. Remove the rear bumper beam assembly (A) after removing the screws and clips.
G15709920Courtesy of KIA MOTORS AMERICA, INC.
