Removal & Installation: Removal

Remove the rear combination lamps.
(Refer to Body Electrical System - "REAR COMBINATION LAMP ")

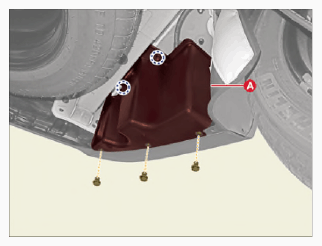

Remove the rear bumper side under cover (A) after removing the clips.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

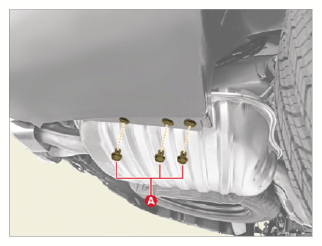

Remove the clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

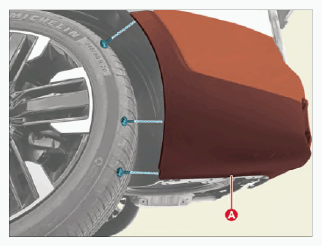

Separate the left and right sides of rear bumper (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

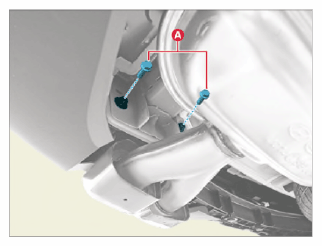

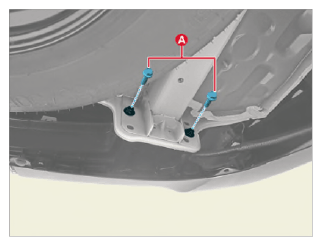

Remove the rear bumper assembly bolts (A).
Tightening torque:

44.1 - 58.8 N.m (4.5 - 6 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

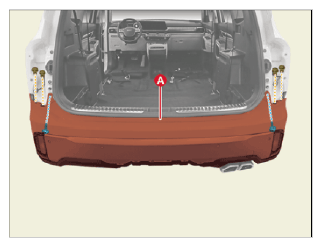

Remove the rear bumper assembly (A) after removing the screws and clips.

Courtesy of KIA MOTORS AMERICA, INC.

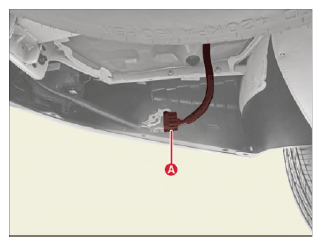

Disconnect the rear bumper connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
