Disassembly & Reassembly: Disassembly

Remove the rear bumper beam assembly.
(Refer to Rear Bumper - "REAR BUMPER BEAM ASSEMBLY ")

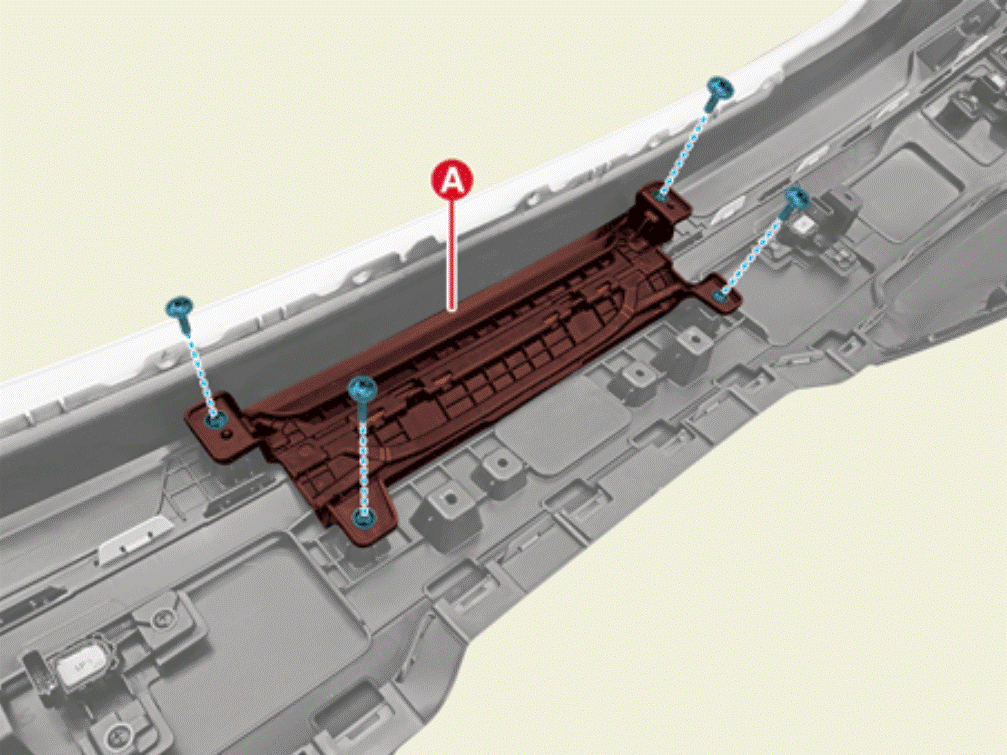

Remove the rear bumper No. 3 bracket (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

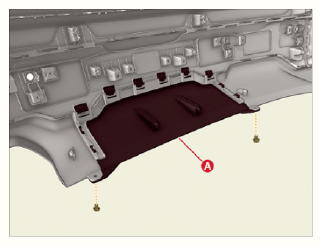

Remove the rear bumper skid plate No. 1 piece (A) after removing the clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

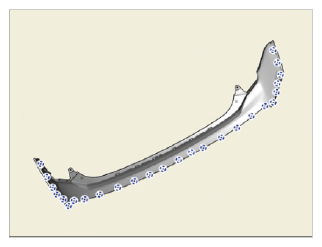

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

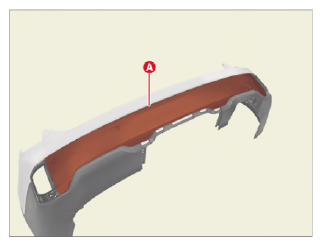

Remove the rear bumper cover assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

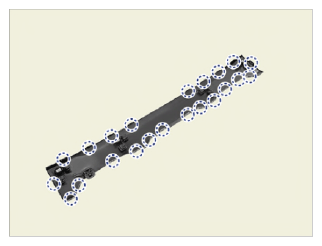

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

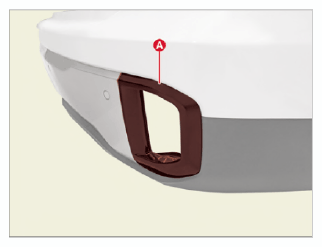

Remove the rear bumper molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

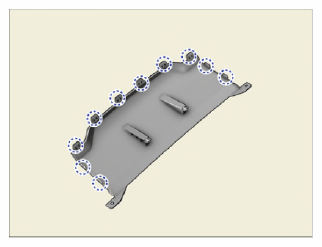

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

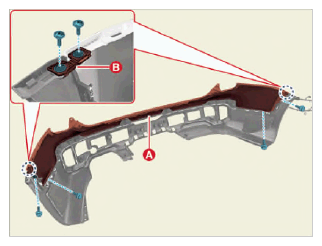

Remove the rear bumper upper cover (A).
1. Remove the rear bumper No. 2 bracket (B) after removing the screws.
2. Remove the rear bumper upper cover (A) after removing the bolts.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

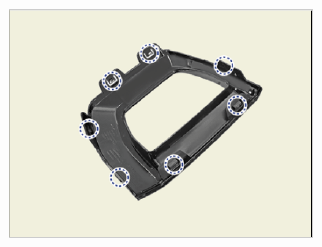

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

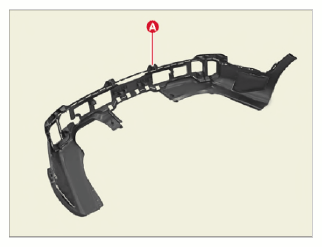

Remove the rear bumper lower cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
