Striker Adjustment

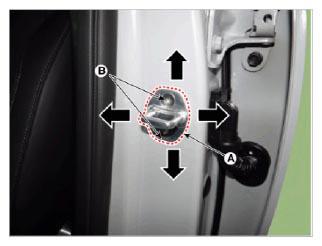

  1. Loosen the screws (B) and adjust the striker (A) by moving it back and forth, left and right, and then tighten the screws (B).

    Tightening torque:

    17.7 - 33.3 N.m (1.8 - 3.4 kgf.m, 13 - 24.6 lb.ft)

    G15709559Courtesy of KIA MOTORS AMERICA, INC.
  2. Check that the door opens and closes properly.
