Glass Adjustment

NOTE: Check the glass run and channel for damage and replace if necessary.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

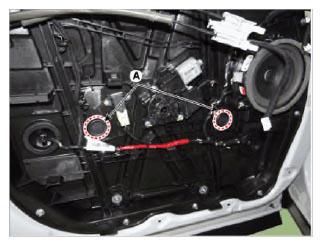

Remove the front door window glass hole plugs (A).

Courtesy of KIA MOTORS AMERICA, INC.
Operate the power window switch to lower the window glass until the window glass bolt is visible in the service hole.

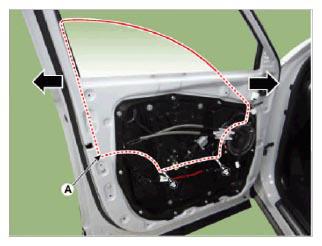

Loosen the bolts, adjust the gap by moving the glass (A) left and right, and then tighten the bolts.
Tightening torque:

8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Check that the glass operates properly.
