Door Adjustment

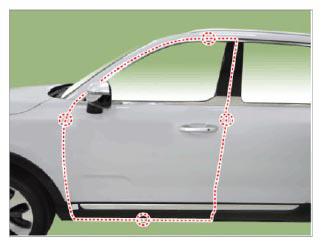

- Check that the gap between the door and the body is even after parking in a flat level.

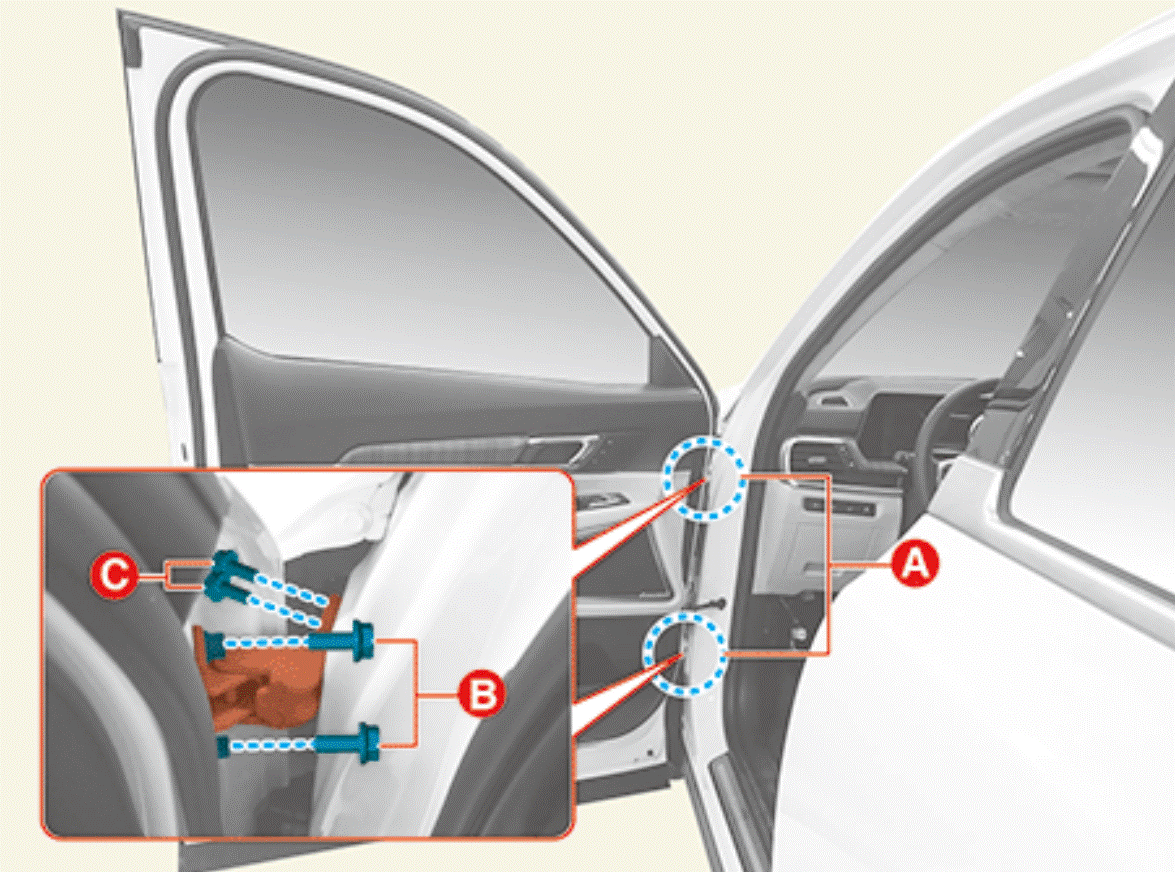

- Loosen the door hinge (A) bolts, adjust the door by moving it back and forth, left and right, and then tighten the bolts.
Tightening torque
(B): 23.5 - 31.4 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.1 lb.ft)
(C): 9.8 - 19.6 N.m (1 - 2 kgf.m, 7.2 - 14.5 lb.ft)
- Check that the gap between the door and the body is even.
