Removal & Installation: Removal
- Remove the front radar.
(Refer to Advanced Driver Assistance System (ADAS) - "FRONT RADAR ")
- Remove the ambient temperature sensor.
(Refer to Heating, Ventilation and Air Conditioning - "AMBIENT TEMPERATURE SENSOR ")

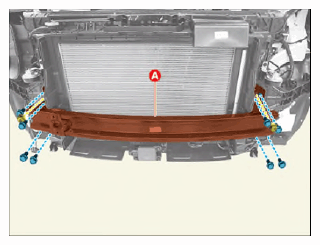

- Remove the front bumper beam assembly (A) after removing the bolts and nuts.
Tightening torque
Bolt: 22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)
Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)
